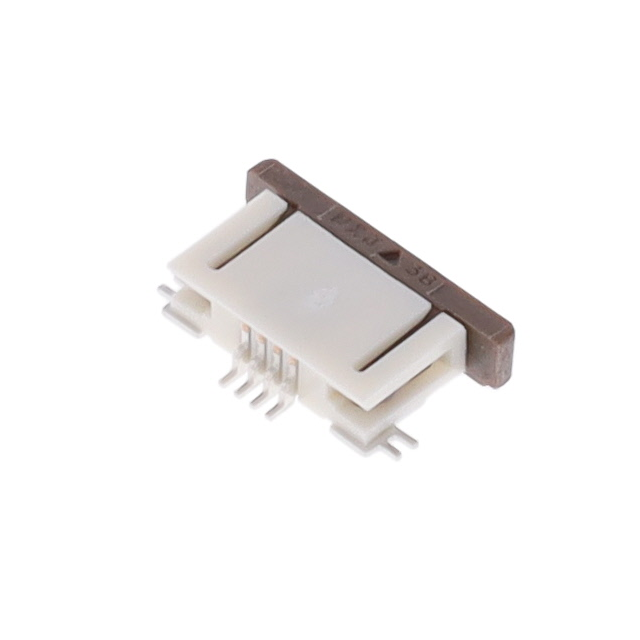

The Molex 52746-0433 is a 4-circuit, 0.50mm pitch Easy-On type FFC/FPC connector designed for secure and reliable connections in compact electronic applications. This bottom contact style connector offers a user-friendly interface, simplifying the insertion and removal of FFC/FPC cables in high-density environments.

Applications:

• Mobile Phones: Connecting displays, cameras, and other modules with flexible circuitry.
• Tablets: Used to connect LCD panels, touchscreens, and internal boards.
• Digital Cameras: Connecting image sensors and other internal components.
• Portable Media Players: Used in devices like MP3 players and portable gaming consoles.
• Notebook Computers: Connecting various internal components with flexible circuitry in compact spaces.
• Wearable Devices: Used in smartwatches and fitness trackers.
• Medical Devices: Connecting sensors, displays, and control panels.

Features:

• 0.50mm Pitch: Provides ultra-high-density interconnection for compact electronic designs.
• Bottom Contact: Simplifies cable insertion in certain orientations and offers secure retention.
• 4 Circuits: Supports multiple signal and power lines in a small form factor.
• Easy-On Actuator: Facilitates easy and secure cable locking and unlocking.
• Surface Mount Technology (SMT): Enables automated assembly and high-density mounting.
• RoHS Compliant: Meets environmental standards for hazardous substances.
• Durable Construction: Designed to withstand repeated insertion and removal cycles.

Benefits:

• Ultra-Compact Design: Enables miniaturization of electronic devices.
• Reliable Connection: Ensures stable signal transmission and prevents disconnections.
• Easy Cable Insertion: Reduces assembly time and effort.
• Durable and Long-lasting: Offers a long service life and minimizes maintenance costs.
• RoHS Compliance: Meets environmental regulations and reduces environmental impact.
• Secure Locking Mechanism: Prevents accidental cable disconnections in dynamic environments.
• Cost-Effective Solution: Provides a balance of performance and affordability.

Additional Details:

The 52746-0433 connector is typically mounted on a PCB using surface mount technology (SMT). It supports standard FFC/FPC cable thicknesses and materials for 0.5mm pitch. The actuator, or cable lock, is designed for easy operation and provides tactile feedback to confirm secure cable connection. The housing material is high-temperature thermoplastic suitable for reflow soldering.
