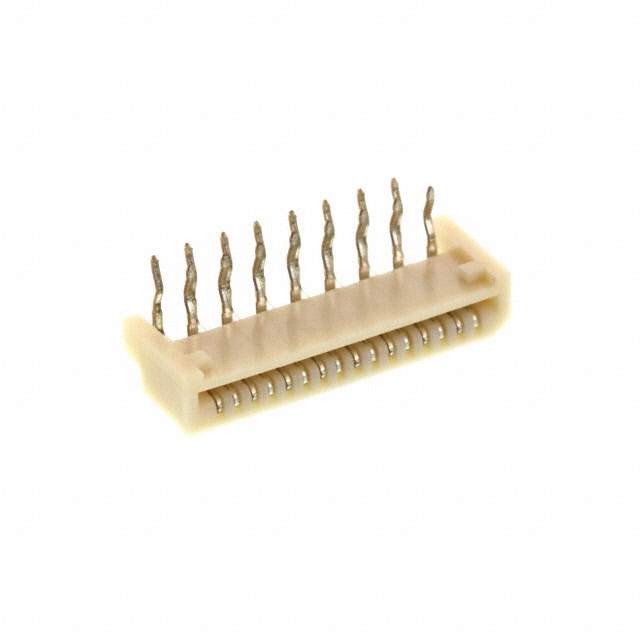

The Molex 52807-1610 is a 16-circuit, 1.00mm pitch Easy-On type FFC/FPC connector designed for secure and reliable connections in a variety of electronic applications. This top contact style connector offers a user-friendly interface, simplifying the insertion and removal of FFC/FPC cables.

Applications:

• LCD displays: Commonly used to connect LCD panels to driver boards.
• Notebook computers: Connects various internal components with flexible circuitry.
• Mobile phones: Enables connections to displays, cameras, and other modules.
• Digital cameras: Used for connecting image sensors and other internal boards.
• Printers: Connects print heads, control panels, and other modules within the printer.
• Consumer electronics: Used in various devices like DVD players, gaming consoles, and portable media players.
• Automotive electronics: Employed in automotive display systems and control units.

Features:

• 1.00mm Pitch: Provides high-density interconnection for compact electronic designs.
• Top Contact: Simplifies cable insertion and offers better retention force.
• 16 Circuits: Supports multiple signal and power lines.
• Easy-On Actuator: Facilitates easy and secure cable locking and unlocking.
• Surface Mount Technology (SMT): Enables automated assembly and high-density mounting.
• RoHS Compliant: Meets environmental standards for hazardous substances.
• Durable Construction: Designed to withstand repeated insertion and removal cycles.

Benefits:

• Reliable Connection: Ensures stable signal transmission and prevents disconnections.
• Easy Cable Insertion: Reduces assembly time and effort.
• Compact Design: Enables miniaturization of electronic devices.
• Durable and Long-lasting: Offers a long service life and minimizes maintenance costs.
• RoHS Compliance: Meets environmental regulations and reduces environmental impact.
• Secure Locking Mechanism: Prevents accidental cable disconnections in dynamic environments.
• Cost-Effective Solution: Provides a balance of performance and affordability.

Additional Details:

The 52807-1610 connector is typically mounted on a PCB using surface mount technology (SMT). It supports standard FFC/FPC cable thicknesses and materials. The actuator, or cable lock, is designed for easy operation and provides a tactile feedback to confirm secure cable connection. The housing material is typically high-temperature thermoplastic, ensuring suitability for reflow soldering processes.
