Same model may have multiple batches, images only for reference.

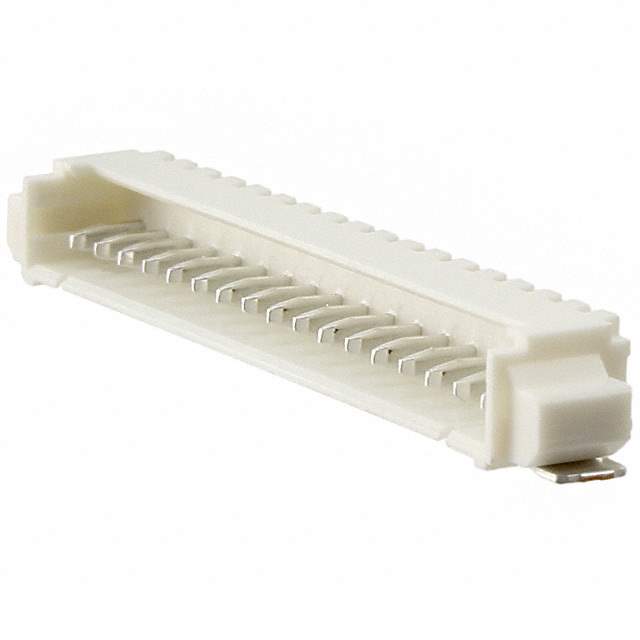

53261-1771 Real Image
Same model may have multiple batches, images only for reference.

53261-1771

Part No 53261-1771
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 17 POS 1.25mm Solder RA SMD PicoBlade™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Country of Origin MY
Current Rating 1 A
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 17
Number of Contacts 17
Number of Positions 17
Number of Rows 1
Orientation Right Angle
Pitch 1.25 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Win Source Part Number 1152564-53261-1771
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53261-1771 CAD Model

Description

The 53261-1771 is a circular connector housing manufactured by Molex, LLC.

  • Win Source Part Number: 1152564
  • Component Type: Surface Mount
  • Number of Positions: 17
  • Pitch: 1.25 mm
  • Number of Rows: 1
  • Termination: Solder
  • Contact Material: Bronze
  • Voltage Rating: 125 V
  • Current Rating: 1 A
  • Number of Contacts: 17
  • Housing Material: Thermoplastic
  • Number of Circuits: 17
  • Orientation: Right Angle
  • Contact Plating: Tin
  • Plating: Tin
  • RoHS Compliant: Yes
  • Max Operating Temperature: 85 °C
