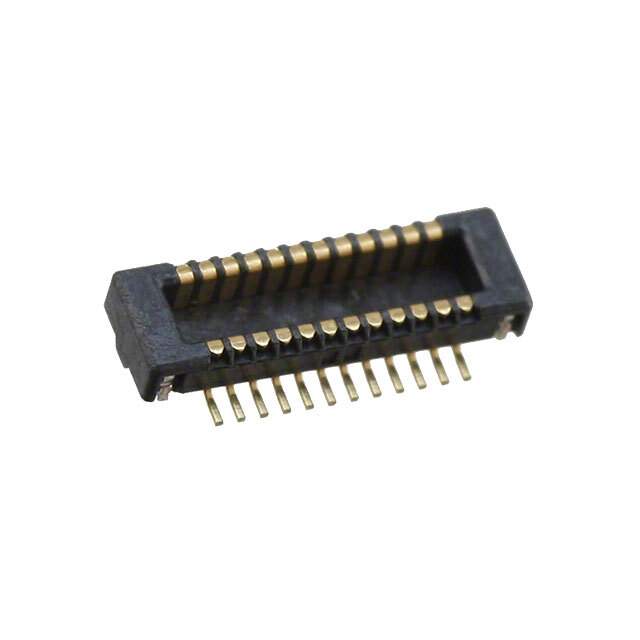

559092474 Real Image
Same model may have multiple batches, images only for reference.

559092474

Part No 559092474
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description 24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Datasheet
559092474 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Manufacturer Molex, LLC
Series SlimStack? 55909
Packaging Reel(TR)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD/SMT
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Mated Stacking Heights 1.5mm
Height Above Board 0.045" (1.14mm)
Win Source Part Number 116659-0559092474
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 559092474 CAD Model

Description

Features and Benefits

  • High reliability and durability
  • Compact design perfect for limited space applications
  • Easy installation process

Applications and Projects

  • Embedded systems
  • IoT devices
  • Consumer electronics
  • Robotics

This product is designed to offer users an efficient solution for a variety of electronic applications. Its compact and durable nature makes it an ideal choice for modern tech advancements that require reliability.
