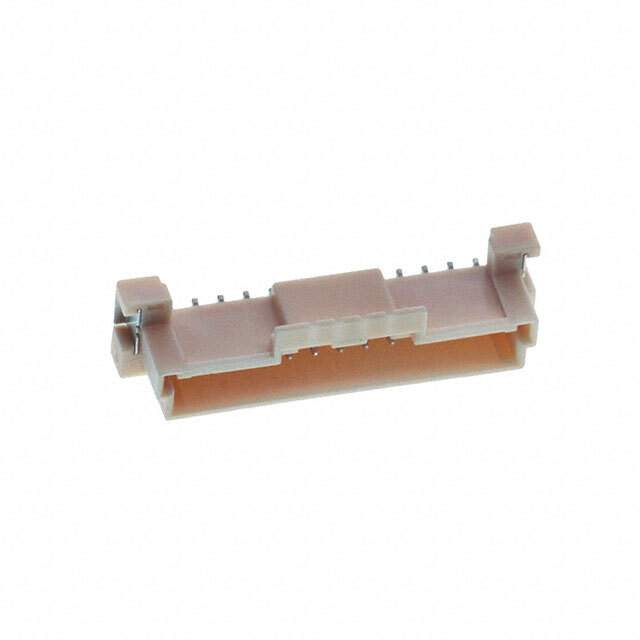

Same model may have multiple batches, images only for reference.

5600201320

Name: 5600201320
Brand: Molex, LLC
SKU: 1333067
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5600201320
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 13POS 2MM / Connector Header Surface Mount 13 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	13
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Latch Lock
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Mated Stacking Heights	9.3mm
Applications	Automotive, Industrial
Base Product Number	560020
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	5600201320-ND,WM20888DKR,WM20888TR,560020-1320,WM20888CT
Standard Package	650
Win Source Part Number	1333067-5600201320
Ultra Librarian 3D Model	Ultra Librarian 5600201320 CAD Model

Alternative Products

Description

The Molex 1333067-5600201320 is a 13-position male pin header connector designed for board-to-cable/wire applications in the automotive and industrial industries.

Solder Retention: Yes
Fastening Type: Latch Lock
Shrouding: 4-Wall
Pitch: 0.079 inches (2.00mm)
Voltage Rating: Rated for Voltage
Contact Material: Copper Alloy
Insulation Material: Polyamide (PA), Nylon
Insulation Height: 0.236 inches (6.00mm)
Contact Shape: Rectangular
RoHS3 Compliant: Yes
ECCN: EAR99
Mounting Style: Surface Mount
