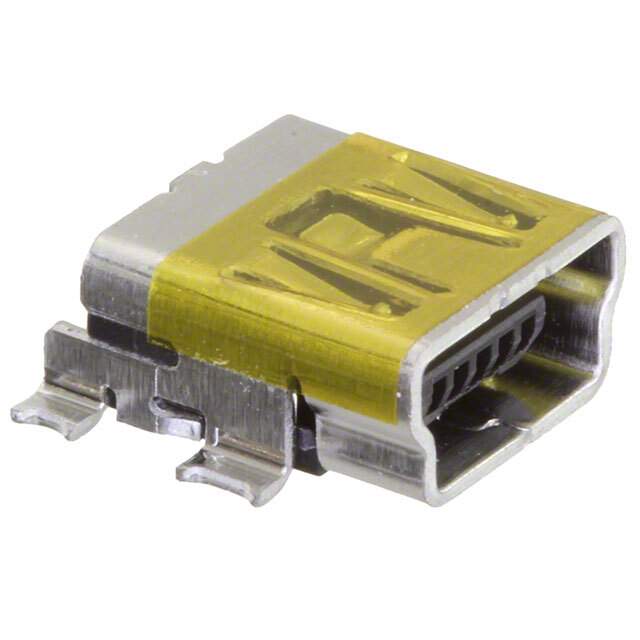

67503-1230 Real Image
Same model may have multiple batches, images only for reference.

67503-1230

Part No 67503-1230
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn Mini USB Type B RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, USB
Contact Material Copper
Contact Plating Gold
Country of Origin HK
Current Rating 1 A
Gender Female
Housing Material Nylon
Max Operating Temperature 50 °C
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature 0 °C
Mount Surface Mount
Number of Circuits 5
Number of Contacts 5
Number of Pins 5
Number of Ports 1
Number of Positions 5
Number of Rows 1
Number of Terminals 5
Orientation Right Angle
Packaging Cut Tape
Pitch 800 µm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Solder
USB Standard USB 2.0
Voltage Rating 30 V
Voltage Rating (AC) 30 V
Win Source Part Number 1202859-67503-1230
Categories USB,DVI,HDMI Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 67503-1230 CAD Model

Description

The 1202859-67503-1230 is a USB connector from Molex, LLC.

  • Color: Black
  • Pitch: 800 µm
  • Connector Type: Receptacle
  • Positions: Five
  • Current Rating: 1A
  • Voltage Rating: 30V
  • RoHS Compliant: Yes
  • Mounting: Surface
