Same model may have multiple batches, images only for reference.

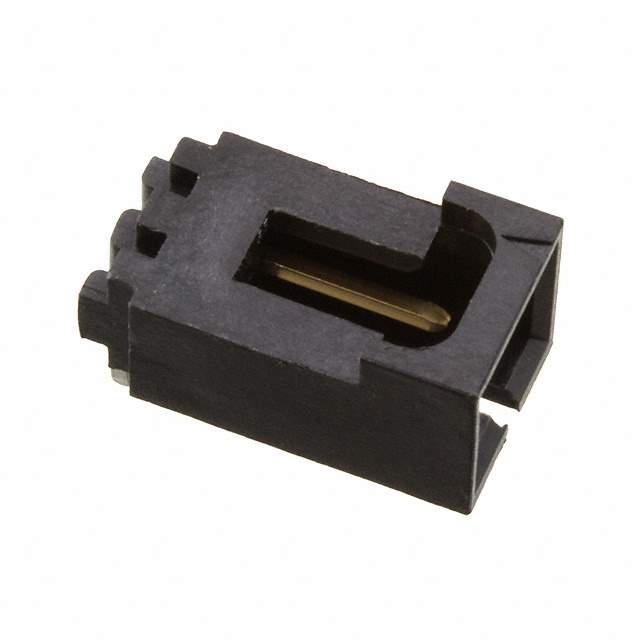

70553-0001 Real Image
Same model may have multiple batches, images only for reference.

70553-0001

Part No 70553-0001
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series *
Package Tube
Other Names 2266-70553-0001
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level Vendor Undefined
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293228-70553-0001
Ultra Librarian 3D Model Ultra Librarian 70553-0001 CAD Model

Description

The Molex 1293228-70553-0001 is a male pin header connector used in rectangular connectors.

  • Manufacturer: Molex
  • Part Number: 1293228-70553-0001
  • Connector Type: Male Pin Header
  • Used In: Rectangular Connectors
  • Standard Package: 1
  • Package Type: Tube
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Series: Molex
  • Part Number: 2266-70553-0001
