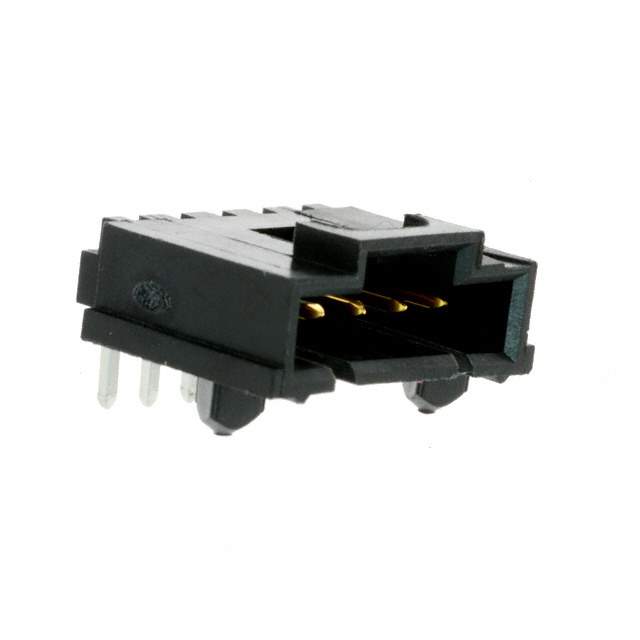

Same model may have multiple batches, images only for reference.

70555-0039

Name: 70555-0039
Brand: Molex, LLC
SKU: 1033857
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	70555-0039
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	5 Position 2.5mm Pitch Receptacle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Brass
Contact Plating	Gold
Contact Resistance	30 mΩ
Country of Origin	US
Current Rating	3 A
Depth	2.03 mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Glow Wire Compliant	Non-compliant
Height	3.69 mm
Housing Material	Thermoplastic
Insulation Resistance	1 GΩ
Lead Pitch	2.54 mm
Length	9.7 mm
Material	Brass
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Cable, Through Hole
Number of Circuits	5
Number of Contacts	5
Number of Pins	5
Number of Positions	5
Number of Rows	1
Orientation	Right Angle
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Through Hole
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1033857-70555-0039
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 70555-0039 CAD Model

Alternative Products

Description

The 1033857-70555-0039 connector from Molex LLC is a circular connector housing that features 5 positions and a pitch of 2.54 mm.

Positions: 5
Pitch: 2.54 mm
Termination: through-hole
Housing Material: thermoplastic
Contact Material: brass
Contact Plating: gold
Contact Resistance: 30 mΩ
Voltage: 250 V
Current: 3 A
Housing Height: 3.69 mm
Housing Length: 9.7 mm
Mounting: cable or through hole
Orientation: right-angle
Compliance: RoHS and ELV
Flammability Rating: UL94 V-0
