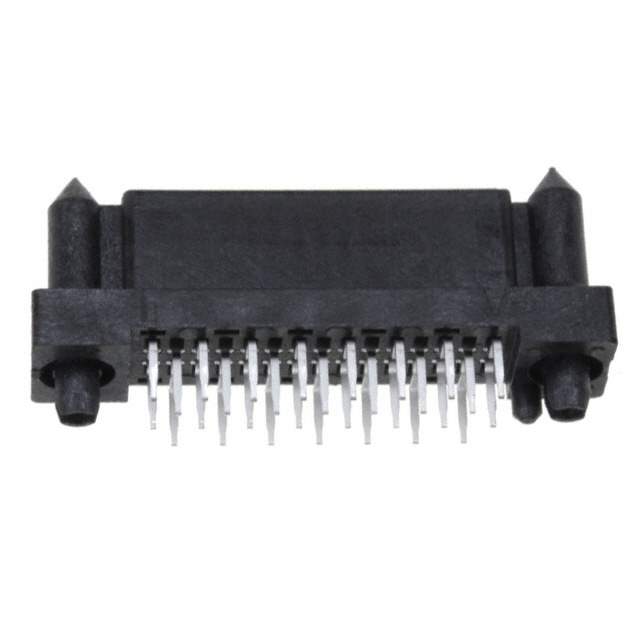

71660-7030 Real Image
Same model may have multiple batches, images only for reference.

71660-7030

Part No 71660-7030
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Automotive Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Material Bronze
Contact Plating Gold
Country of Origin US
Current Rating 1 A
Flammability Rating UL94 V-0
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Lead Free Yes
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 30
Number of Contacts 30
Number of Positions 30
Number of Rows 2
Orientation Vertical
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 30 V
Win Source Part Number 1007070-71660-7030
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 71660-7030 CAD Model

Description

The Molex, LLC 1007070-71660-7030 is a receptacle connector with a pitch of 2.54 mm and a total of 30 contacts.

  • Pitch: 2.54 mm
  • Number of Contacts: 30
  • Number of Rows: 2
  • Current Rating: 1 A
  • Voltage Rating: 30 V
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Housing Material: Thermoplastic
  • Housing Color: Black
  • Termination: Solder
  • RoHS Compliant: Yes
  • Halogen Content: Low
  • Suitable for: Circular Connector Housings
