Same model may have multiple batches, images only for reference.

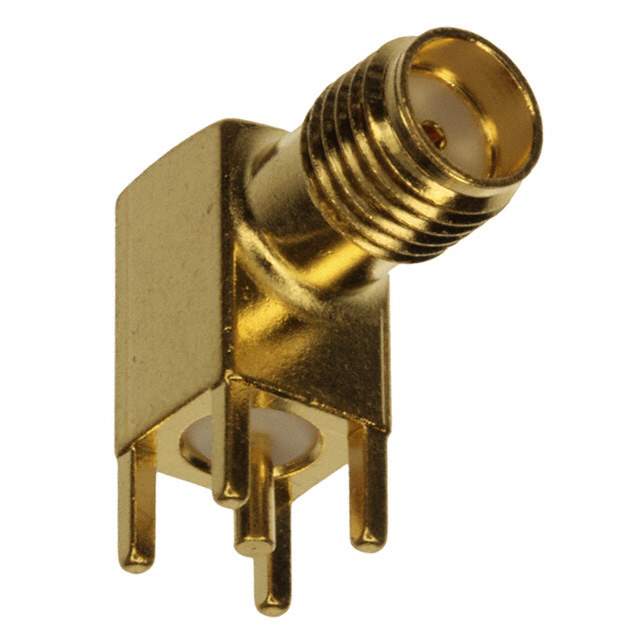

73100-0114 Real Image
Same model may have multiple batches, images only for reference.

73100-0114

Part No 73100-0114
Manufacturer Molex, LLC
Catalog Coaxial Connectors (RF)
Description Connector; Cable; PCB Mount; Right Angle; Brass; 0.595 in.; Beryllium Copper
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Brass
Body Plating Gold
Mounting SMD (SMT)
Case / Package SMA
Connector Type Coaxial, PCB, SMA
Contact Material Copper, Gold
Contact Plating Gold
Country of Origin TW
Dielectric Material Teflon
Frequency 18 GHz
Gender Female
Halogen Free Low Halogen
Height 9.57 mm
Impedance 50 Ω
Lead Free Yes
Length 14.8 mm
Mount Through Hole
Number of Contacts 1
Orientation Right Angle
Packaging Bulk
Plating Gold
Polarity Normal
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Win Source Part Number 1004185-73100-0114
Categories Coaxial Connectors(RF)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 73100-0114 CAD Model

Description

The Molex, LLC 1004185-73100-0114 is a coaxial connector electronic component that has a female gender and a right angle orientation.

  • Manufacturer: Molex, LLC
  • Connector Gender: Female
  • Orientation: Right Angle
  • Contact Plating: Gold
  • Body Plating: Gold
  • RoHS Compliant: Yes
  • Manufacturing Region: Taiwan
  • Supply and Demand Status: Limited
