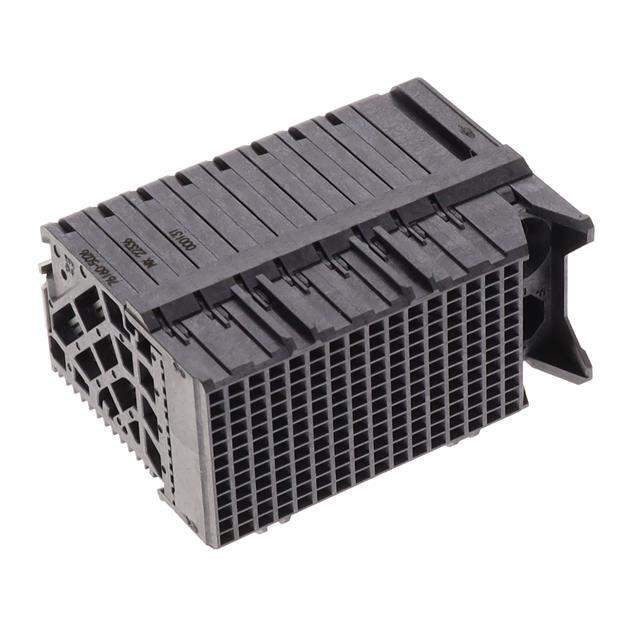

76160-5026 Real Image
Same model may have multiple batches, images only for reference.

76160-5026

Part No 76160-5026
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Conn Daughter Card RCP 192 POS 1.9mm Press Fit RA Thru-Hole Impact™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Data Rate 25 Gbps
Depth 28.2 mm
Flammability Rating UL94 V-0
Housing Color Black
Housing Material Polymer
Impedance 100 Ω
Length 38 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -55 °C
Mount Edge, Through Hole
Number of Circuits 192
Number of Columns 16
Number of Pairs 4
Number of Positions 192
Number of Rows 12
Orientation Right Angle
Pitch 1.9 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Shielding No
Termination Press-Fit
Voltage Rating 30 V
Win Source Part Number 1195654-76160-5026
Categories Backplane Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 76160-5026 CAD Model

Description

The Molex 1195654-76160-5026 is a high-performance backplane connector that is designed for use in various electronic applications.

  • Positions: 192
  • Circuits: 192
  • Pitch: 1.9mm
  • Color: black
  • Type: receptacle
  • Termination: press-fit
  • Orientation: right-angle
  • Contact Plating: gold
  • Housing Material: polymer
  • Voltage Rating: 30V
  • Data Rate: 25Gbps
  • Impedance: 100Ω
  • Compliance: RoHS compliant
  • Flammability Rating: UL94 V-0
  • Popularity: medium
  • Supply and Demand Status: limited
