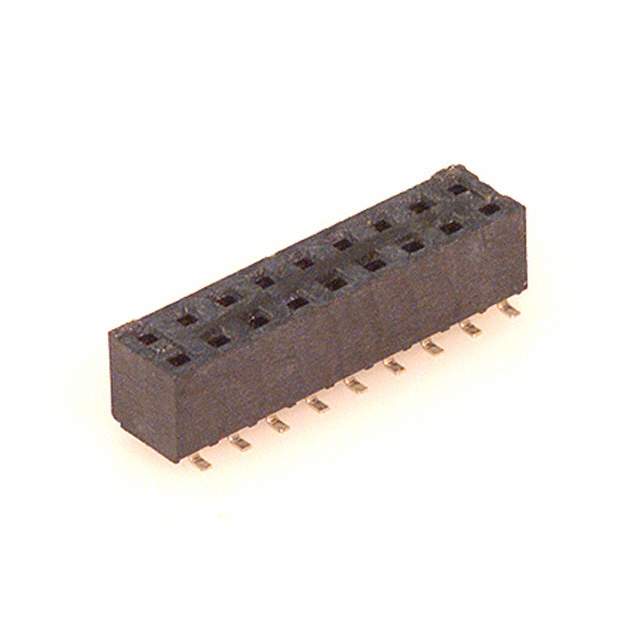

79109-1008 Real Image
Same model may have multiple batches, images only for reference.

79109-1008

Part No 79109-1008
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Socket Strip RCP 18 POS 2mm Solder ST SMD Milli-Grid™ Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, Socket
Contact Gender Female
Contact Material Bronze
Contact Plating Gold
Contact Resistance 25 mΩ
Country of Origin SG
Current Rating 1 A
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material Polymer
Lead Free Lead Free
Lead Pitch 2 mm
Max Operating Temperature 105 °C
Max Voltage Rating (DC) 125.125 kV
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 18
Number of Contacts 18
Number of Positions 18
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.0066 mm
Termination Solder
Voltage Rating 125 V
Win Source Part Number 1220566-79109-1008
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 79109-1008 CAD Model

Description

The Molex LLC 1220566-79109-1008 is an 18 position, 2 row, vertical receptacle/socket connector.

  • Positions: 18
  • Rows: 2
  • Orientation: Vertical
  • Connector Type: Receptacle/Socket
  • Pitch: 2 mm
  • Voltage Rating: 125 V
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Housing Material: Polymer
  • Contact Resistance: 25 mΩ
  • RoHS Compliant: Yes
  • Mount: Surface Mount
  • Supply and Demand: Limited
  • Housing Color: Black
  • Radiation Hardening: No
  • Wire/Cable Type: Not Stackable
  • Flammability Rating: UL94 V-0
