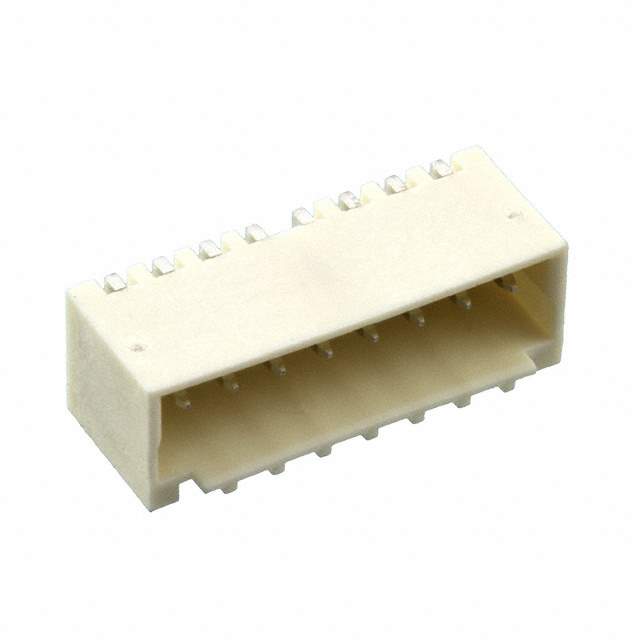

87438-0843 Real Image
Same model may have multiple batches, images only for reference.

87438-0843

Part No 87438-0843
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 8 POS 1.5mm Solder RA SMD Pico-SPOX T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Beige, Natural
Contact Material Brass
Contact Plating Tin
Contact Resistance 40 mΩ
Country of Origin SG
Current Rating 3 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 4.45 mm
Housing Color Beige
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Free Contains Lead
Lead Pitch 1.5 mm
Length 13.3 mm
Material Nylon
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 350 V
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape
Pitch 1.5 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT, Solder
Voltage Rating 350 V
Voltage Rating (AC) 350 V
Voltage Rating (DC) 350 V
Width 5.75 mm
Win Source Part Number 1013662-87438-0843
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87438-0843 CAD Model

Description

The 1013662-87438-0843 from Molex, LLC is a high-quality circular connector housing that is suitable for a range of applications.

  • Supply and Demand Status: Shortage
  • Pitch: 1.5mm
  • Mounting: Surface mount
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Connector Housing Material: Thermoplastic
  • Flammability Rating: UL94 V-0
