Same model may have multiple batches, images only for reference.

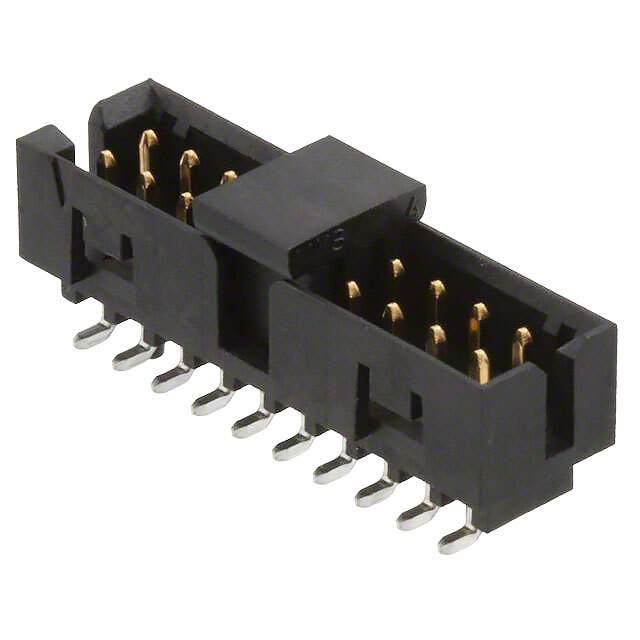

87832-2014 Real Image
Same model may have multiple batches, images only for reference.

87832-2014

Part No 87832-2014
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 20 POS 2mm Solder ST Top Entry SMD Milli-Grid™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Bronze
Contact Mating Length 3.5814 mm
Contact Plating Gold
Country of Origin SG
Current Rating 2 A
Depth 6.3 mm
Housing Color Black
Housing Material Nylon
Length 22.65 mm
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 18
Number of Contacts 20
Number of Positions 20
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Row Spacing 2.0066 mm
Schedule B 8536694040
Termination Solder
Win Source Part Number 1160429-87832-2014
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 87832-2014 CAD Model

Description

The Molex 1160429-87832-2014 is a male pin connector that has 20 positions and a pitch of 2mm.

  • Positions: 20
  • Pitch: 2mm
  • Color: Black
  • Current Rating: 2A
  • Housing Material: Nylon
  • Contact Material: Bronze
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • Depth: 6.3mm
  • Mounting: Surface Mount
