Same model may have multiple batches, images only for reference.

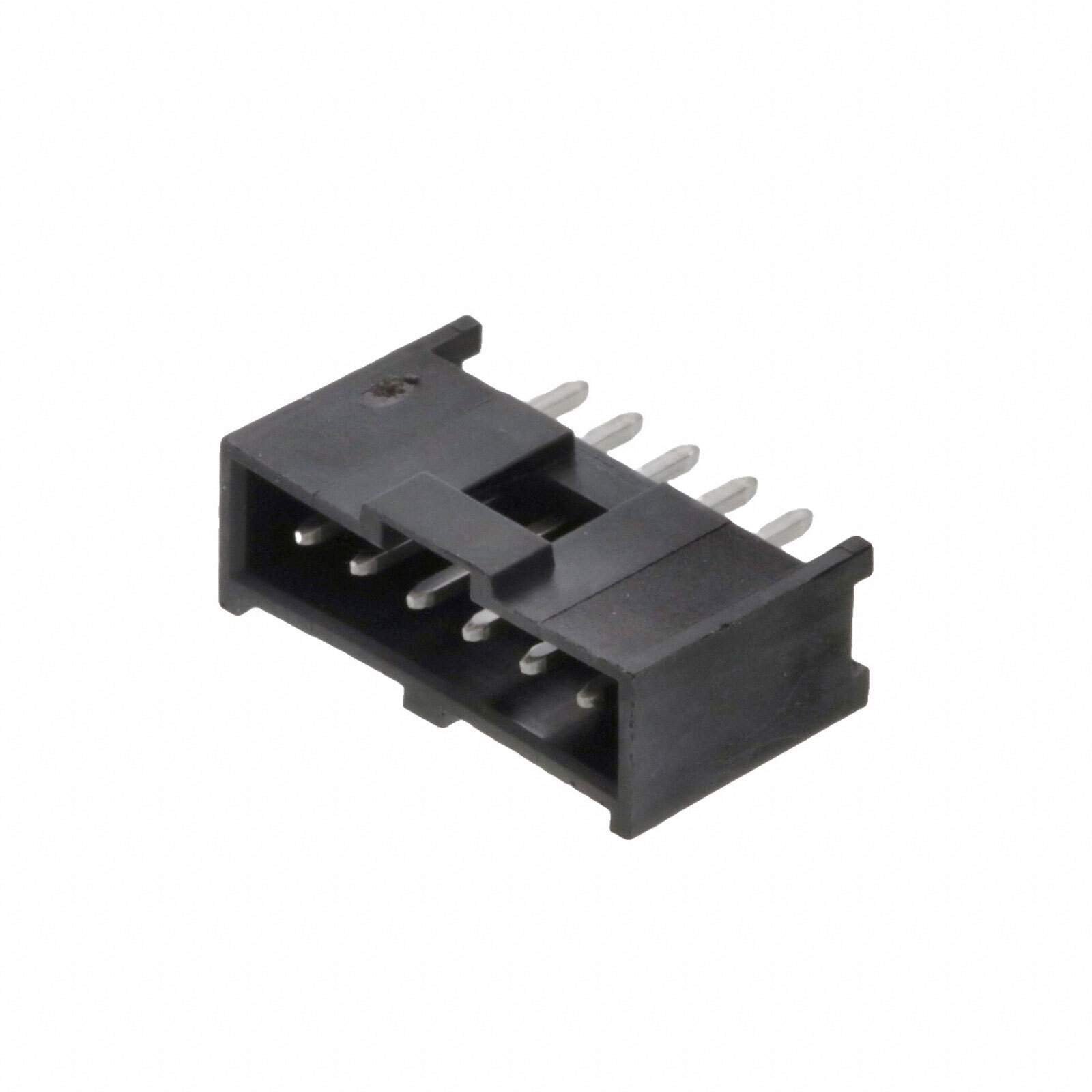

90136-1106 Real Image
Same model may have multiple batches, images only for reference.

90136-1106

Part No 90136-1106
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.54mm (.100) Pitch C-Grid III™ Header, Single Row, Vertical, Shrouded, 6 Circuits, 4μm (160μ) Tin/Lead (Sn) over Nickel (Ni) | CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.510" (12.95mm)
Insulation Height 0.429" (10.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive, General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1134173-90136-1106
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90136-1106 CAD Model

Description

The Molex 1134173-90136-1106 Header Connector is a through-hole mounting style connector with 6 male pin contacts. It has a latch holder fastening type and is made of brass contact material.

  • Mounting Style: Through Hole
  • Number of Contacts: 6
  • Contact Gender: Male
  • Fastening Type: Latch Holder
  • Contact Material: Brass
  • Application: Automotive and General Purpose
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Insulation Material: Polyester and Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Shrouding: Shrouded 4-Wall
  • Contact Finish-Mating: Tin
  • Contact Finish Thickness-Mating: 118.1μin (3.00μm)
  • Overall Contact Length: 0.510 inches (12.95mm)
  • Insulation Height: 0.429 inches (10.90mm)
  • Contact Shape: Square
  • Contact Length-Mating: 0.266 inches (6.75mm)
