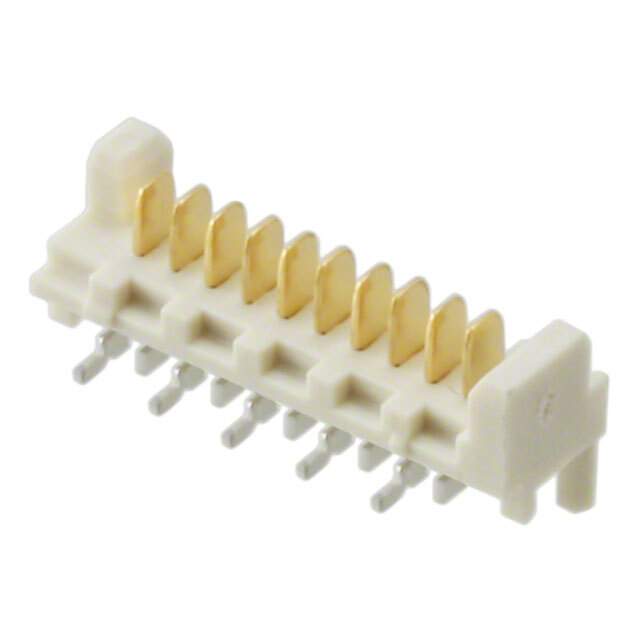

0908143810 Real Image
Same model may have multiple batches, images only for reference.

0908143810

Part No 0908143810
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet
0908143810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.085" (2.15mm)
Insulation Height 0.161" (4.10mm)
Contact Shape Rectangular
Contact Finish - Mating Palladium-Nickel
Contact Finish Thickness - Mating 24.0µin (0.61µm)
Contact Finish - Post Tin
Contact Material Cartridge Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 118.1µin (3.00µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 90814
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM19287,090814-3810-E,90814-3810-E,0908143810-E,908143810-E,090814-3810,908143810,90814-3810
Standard Package 1
Win Source Part Number 1332981-0908143810
Ultra Librarian 3D Model Ultra Librarian 0908143810 CAD Model

Description

The Molex 1332981-0908143810 is a 10-position header connector, designed for use in automotive, general purpose, industrial, and medical applications.

  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Pitch: 0.050" (1.27mm)
  • Fastening Type: Push-Pull
  • Mounting: Surface Mount
  • Contact Material: Cartridge Brass
  • Contact Finish Mating: Palladium-Nickel
  • Contact Finish Post: Tin
  • Shrouding: Shrouded - 2 Wall
  • Contact Shape: Rectangular
  • Insulation Height: 0.161" (4.10mm)
  • Contact Length Mating: 0.085" (2.15mm)
  • ROHS3 Compliant: Yes
