Same model may have multiple batches, images only for reference.

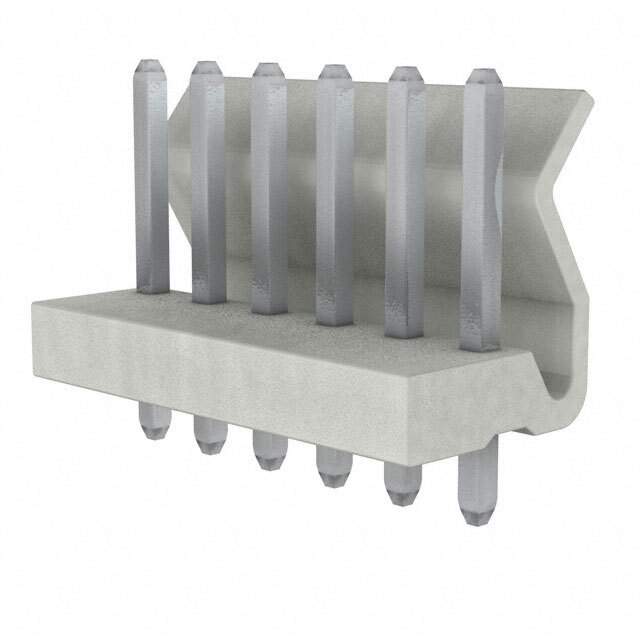

0009652068 Real Image
Same model may have multiple batches, images only for reference.

0009652068

Part No 0009652068
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 3.96MM / Connector Header Through Hole 6 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.419" (10.65mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.687" (17.45mm)
Insulation Height 0.482" (12.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 200.0µin (5.08µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-2
Insulation Color Natural
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 000965
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM18827,09-65-2068,5273-06A,9652068
Standard Package 4,000
Win Source Part Number 1332376-0009652068
Ultra Librarian 3D Model Ultra Librarian 0009652068 CAD Model

Description

The Molex header male pin connector has 6 positions with a pitch of 0.156" (3.96mm).

  • Positions: 6
  • Pitch: 0.156" (3.96mm)
  • Design: Shrouded connector
  • Fastening Type: Friction lock
  • Mounting: Through hole
  • Contact Finish: Tin
  • Contact Finish Thickness: 200.0μin (5.08μm)
  • Contact Termination: Solder
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
