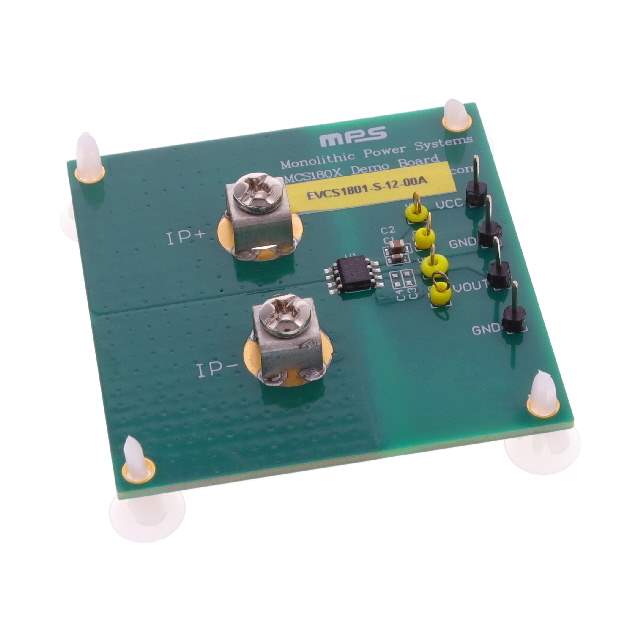

EVCS1801-S-12-00A Real Image
Same model may have multiple batches, images only for reference.

EVCS1801-S-12-00A

Part No EVCS1801-S-12-00A
Manufacturer Monolithic Power Systems Inc.
Catalog Evaluation Boards - Sensors
Description LINEAR HALL-EFFECT CURRENT SENSO  /  MCS1801 series Current Sensor Sensor Evaluation Board
Datasheet
EVCS1801-S-12-00A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr Monolithic Power Systems Inc.
Package Box
Sensor Type Current Sensor
Sensing Range ±12.5A
Interface Analog
Sensitivity 160mV/A
Voltage - Supply 4.5V ~ 5.5V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part MCS1801
MSL Level Not Applicable
REACH Status REACH Unaffected
Other Names 1589-EVCS1801-S-12-00A
Standard Package 1
Win Source Part Number 1053168-EVCS1801-S-12-00A
Ultra Librarian 3D Model Ultra Librarian EVCS1801-S-12-00A CAD Model

Description

The EVCS1801-S-12-00A is an evaluation board for current sensors designed and manufactured by Monolithic Power Systems Inc. It is designed to interface with an analog input and has a sensitivity of 160mV/A. The EVCS1801-S-12-00A is supplied with board(s) and has a sensing range of ±12.5A. It utilizes the MCS1801 IC/part and has a voltage supply range of 4.5V to 5.5V. The EVCS1801-S-12-00A is classified under the category of Development Boards, Kits, Programmers>Evaluation Boards - Sensors. It is REACH unaffected.
