Same model may have multiple batches, images only for reference.

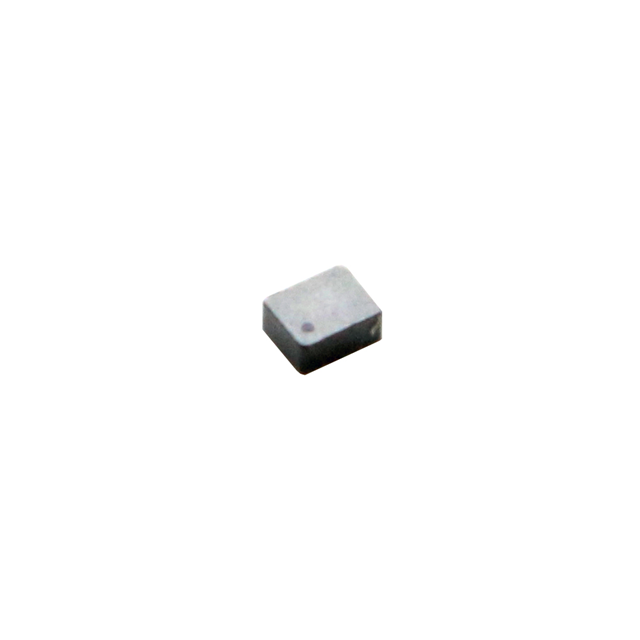

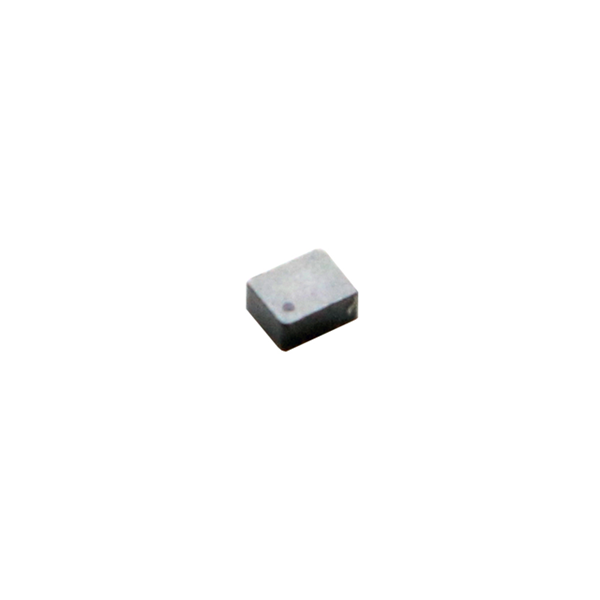

MPL-AT2010-R47 Real Image
Same model may have multiple batches, images only for reference.

MPL-AT2010-R47

Part No MPL-AT2010-R47
Manufacturer Monolithic Power Systems Inc.
Catalog Fixed Inductors
Description FIXED IND 470NH 4.4A 27 MOHM SMD / 470 nH Unshielded Molded Inductor 4.4 A 27mOhm 2-SMD, J-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Monolithic Power Systems Inc.
Series MPL-AT
Package Tape & Reel
Type Molded
Inductance 470 nH
Current Rating (Amps) 4.4 A
Current - Saturation (Isat) 5.7A
Shielding Unshielded
DC Resistance (DCR) 27mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number MPL-AT2010
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1351653-MPL-AT2010-R47
Ultra Librarian 3D Model Ultra Librarian MPL-AT2010-R47 CAD Model

Description

The MPL-AT2010-R47 is a molded type inductor from Monolithic Power Systems Inc.

  • Manufacturer: Monolithic Power Systems Inc.
  • Part Number: MPL-AT2010-R47
  • Type: Molded
  • Package: 2-SMD, J-Lead
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Shielding: Unshielded
  • Inductance: 470 nH
  • DC Resistance (DCR): 27mOhm
  • Height: 0.039" (1.00mm) Max Seated
  • Current Rating: 4.4 A
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Standard Package: 3,000
  • Inductor Type: Fixed Inductor
