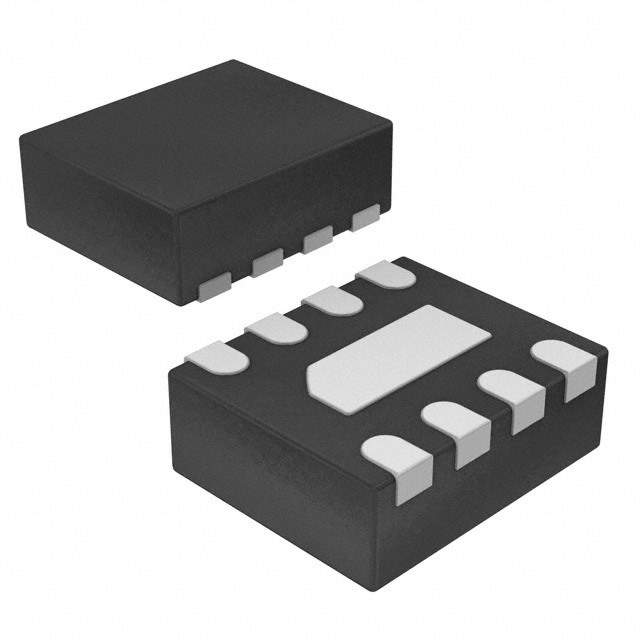

MP20043DGT-A-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP20043DGT-A-LF-Z

Part No MP20043DGT-A-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description Dual Channel, 300mA Linear Regulator With Programmable Output Voltage and Output Discharge
Datasheet
MP20043DGT-A-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Reel - TR
Output Configuration Positive
Output Type Programmable
Number of Regulators 2
Voltage Input MAX 5.5V
Output Voltage 1.5V, 2.8V
Output Voltage MAX 2.8V, 3.3V
Voltage Dropout (Maximum) 0.28V @ 300mA, 0.28V @ 300mA
Output Current 300mA, 300mA
Operating Supply Current 90μA ~ 150μA
PSRR 75dB (100Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 8-VFDFN Exposed Pad
Manufacturer Package 8-TQFN (2x2)
Win Source Part Number 1225951-MP20043DGT-A-LF-Z
Manufacturer Homepage www.monolithicpower.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MP20043DGT-A-LF-Z CAD Model

Description

The Monolithic Power Systems Inc. MP20043DGT-A-LF-Z is a high-quality programmable regulator with a positive output configuration.

  • Voltage Input Maximum: 5.5V
  • Voltage Dropout: 0.28V @ 300mA
  • Package: 8-VFDFN Exposed Pad
  • RoHS Compliant: Yes
  • PSRR: 75dB (100Hz ~ 1kHz)
  • Protection Features: Overcurrent, Overtemperature, and Short Circuit
