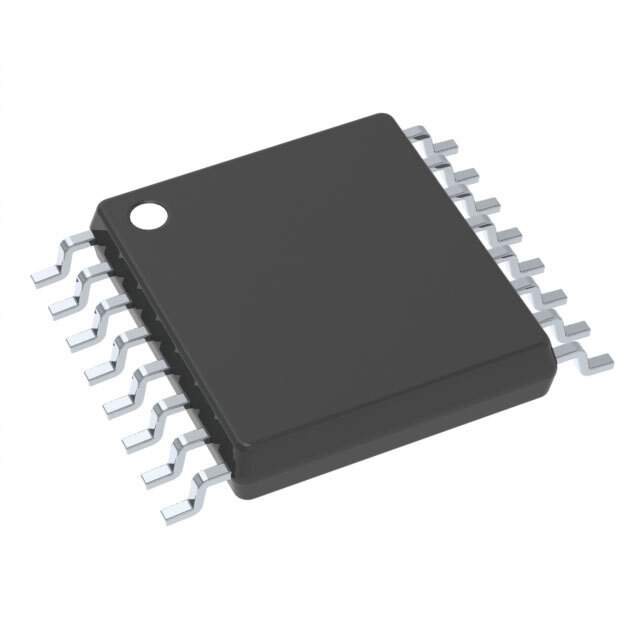

MP6510DM-LF Real Image
Same model may have multiple batches, images only for reference.

MP6510DM-LF

Part No MP6510DM-LF
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER 4.5V-16V 16TSSOP / Motor Driver Power MOSFET Parallel 16-TSSOP
Datasheet
MP6510DM-LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Monolithic Power Systems Inc.
Package Tube
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Applications General Purpose
Current - Output 1.2A
Voltage - Supply 4.5V ~ 16V
Voltage - Load 4.5V ~ 16V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 96
Win Source Part Number 1179489-MP6510DM-LF
Ultra Librarian 3D Model Ultra Librarian MP6510DM-LF CAD Model

Description

The MP6510DM-LF is a fully integrated driver IC that is designed for brushless DC motor applications.

  • Technology: Power MOSFET
  • Current Output: 1.2A
  • Output Configuration: Half Bridge
  • Voltage Load Range: 4.5V to 16V
  • Application: General Purpose
  • Interface: Parallel
  • Package: 16-TSSOP
  • Width: 4.40mm
  • Temperature Range: -40°C to 125°C (TJ)
  • REACH: Unaffected
