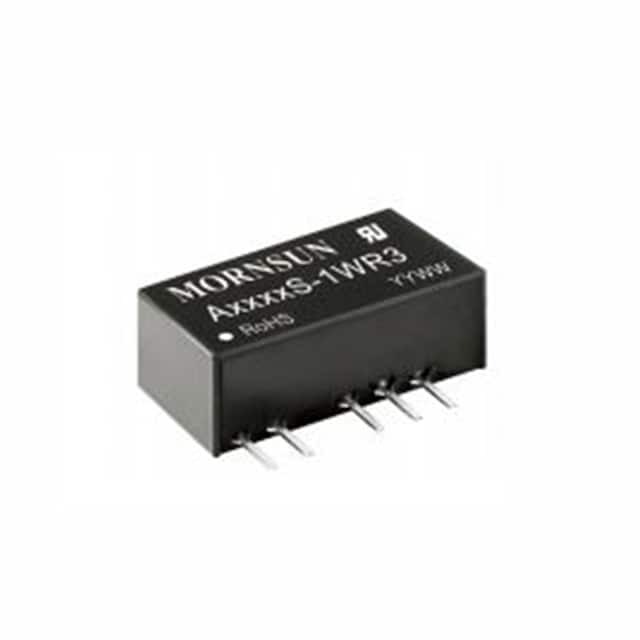

Same model may have multiple batches, images only for reference.

A0509S-1WR3

Get a Quote

Part No	A0509S-1WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-9V 1W / Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 4.5V - 5.5V Input
Sample
Rohs State
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Mornsun America, LLC
Series	A_S-1WR3 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	9V
Voltage - Output 2	-9V
Current - Output (Max)	56mA, 56mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Approval Agency	CB, CE, cURus
Base Product Number	A0509S
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	2725-A0509S-1WR3,-2729-A0509S-1WR3
Standard Package	25
Win Source Part Number	1041893-A0509S-1WR3
Ultra Librarian 3D Model	Ultra Librarian A0509S-1WR3 CAD Model

Alternative Products

Description

The A0509S-1WR3 is a power supply module designed for use in ITE (Commercial) applications.

Application: ITE (Commercial)
Efficiency: 83%
Temperature Range: -40°C to 105°C
Package/Case: 7-SIP module, 5 leads
Mounting: Through hole
Outputs: 2
Current Output: 56mA, 56mA
Voltage Output: 9V and -9V
Approvals: CB, CE, and cURus
