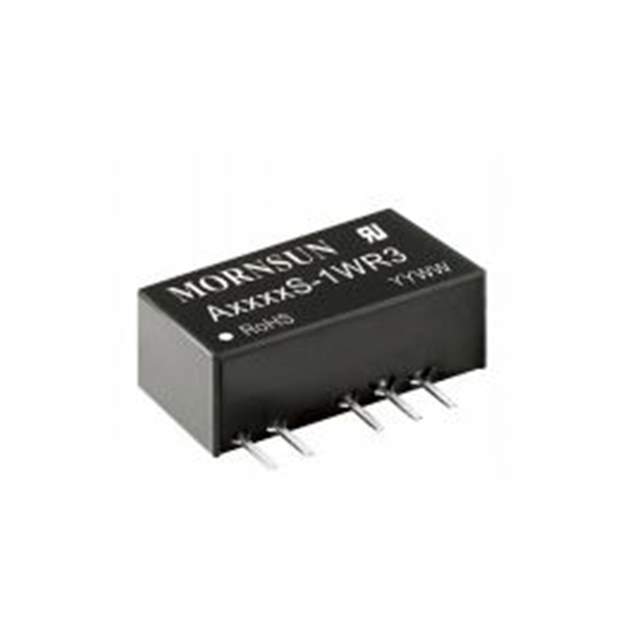

A0515S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

A0515S-1WR3

Part No A0515S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 4 Weeks
Features Isolated Module DC DC Converter Output 15V -15V - - 34mA, 34mA 4.5V - 5.5V Input
Manufacturer MORNSUN Science& Technology Ltd.
Series A0515S-1WR3 (1W)
Package Tube
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole
Package 7-SIP Module, 5 Leads
Family Name A0515S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2725-A0515S-1WR3, -2729-A0515S-1WR3
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858779-A0515S-1WR3
Ultra Librarian 3D Model Ultra Librarian A0515S-1WR3 CAD Model

Description

The A0515S-1WR3 (1W) series of isolated module DC DC converters is manufactured by MORNSUN Science & Technology Ltd.

  • Product: A0515S-1WR3 (1W)
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Output: 15V -15V - - 34mA, 34mA
  • Input: 4.5V - 5.5V
  • Operating Temperature: -40°C to 105°C
  • Package: 7-SIP module, 5 leads
  • Mounting: Through hole
  • Family Name: A0515S
  • Category: Power supplies - board mount
  • Estimated Production Lead Time: 4 weeks
  • MSL Level: 1 (Unlimited)
  • Package Contains: 25 units
  • HTSUS: 8504.40.9580
  • Other Part Numbers: 2725-A0515S-1WR3, -2729-A0515S-1WR3
