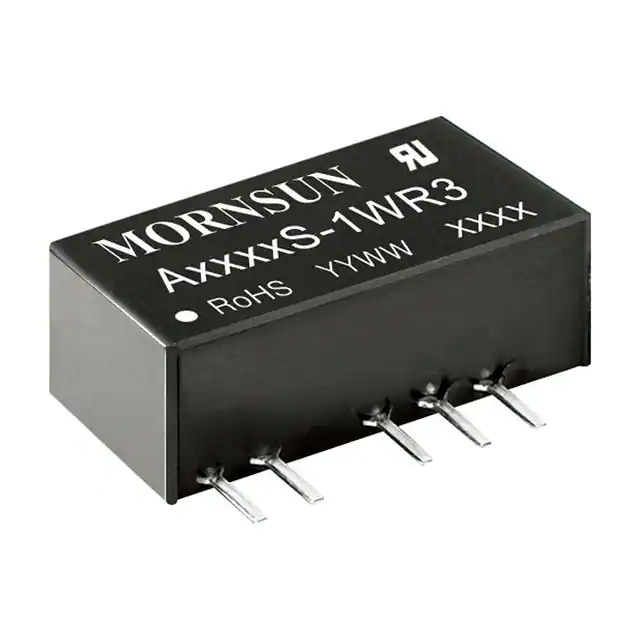

A1505S-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

A1505S-1WR3

Part No A1505S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series A_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372971-A1505S-1WR3
Ultra Librarian 3D Model Ultra Librarian A1505S-1WR3 CAD Model

Description

The Mornsun America, LLC A_S-1WR3 (1W) is a power supply module designed for board mount DC-DC conversion.

  • Temperature Range: -40°C to 105°C (with derating)
  • Voltage - Input: 13.5V to 16.5V
  • Output Type: 2, Dual
  • Voltage - Output: 5V, -5V
  • Efficiency: 80%
  • Maximum Output Current: 100mA
  • Mounting Type: Through Hole
  • Package / Case: 7-SIP Module, 5 Leads
  • Applications: ITE (Commercial)
  • Approvals: CB, CE, cURus, UL
  • Voltage - Isolation: 1.5 kV
  • Size / Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
