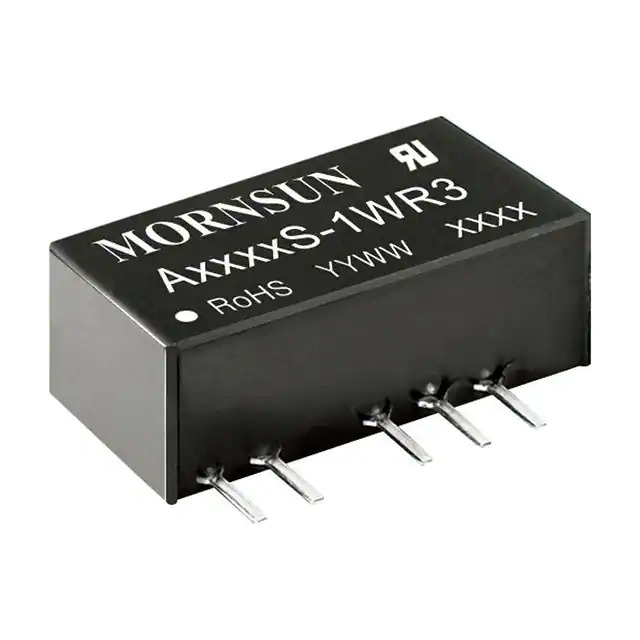

Same model may have multiple batches, images only for reference.
A1512S-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

A1512S-1WR3

Part No A1512S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series A_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372977-A1512S-1WR3
Ultra Librarian 3D Model Ultra Librarian A1512S-1WR3 CAD Model

Description

The A1512S-1WR3 is a 1W isolated module DC-DC converter from Mornsun America, LLC.

  • Description: Isolated Module DC-DC Converter
  • Power Supply Application: Commercial Information Technology Equipment (ITE)
  • Voltage Input Range: 13.5V to 16.5V
  • Output Voltage: 12V and -12V
  • Efficiency: 80%
  • Maximum Output Current: 42mA for each output
  • Package: 7-SIP
  • Leads: 5
  • Mounting Style: Through Hole
  • Voltage Isolation: 1.5kV
  • Temperature Range: -40°C to 105°C
  • Product Status: Active
  • MSL Level: Not Applicable
  • REACH Compliance: Yes
  • ECCN Classification: EAR99
