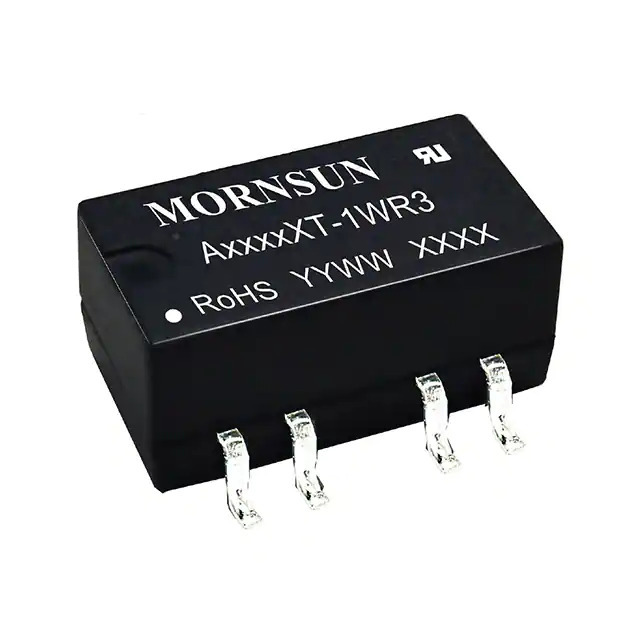

Same model may have multiple batches, images only for reference.
A2409XT-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

A2409XT-1WR3

Part No A2409XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series A_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 56mA, 56mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372918-A2409XT-1WR3
Ultra Librarian 3D Model Ultra Librarian A2409XT-1WR3 CAD Model

Description

The 1372918-A2409XT-1WR3 is a power supply DC-DC converter module manufactured by Mornsun America, LLC.

  • Series: A_XT-1WR3
  • Module: 10-SMD Module
  • Number of Leads: 6
  • Applications: ITE (Commercial)
  • Size / Dimension: 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
  • Current - Output (Max): 56mA
  • Power (Watts): 1W
  • Voltage - Input (Min): 21.6V
  • Voltage - Input (Max): 26.4V
  • Voltage - Output 1: 9V
  • Voltage - Output 2: -9V
  • Efficiency: 83%
  • Voltage - Isolation: 1.5 kV
  • Approval Agency: CB, CE, cURus, UL
