Same model may have multiple batches, images only for reference.

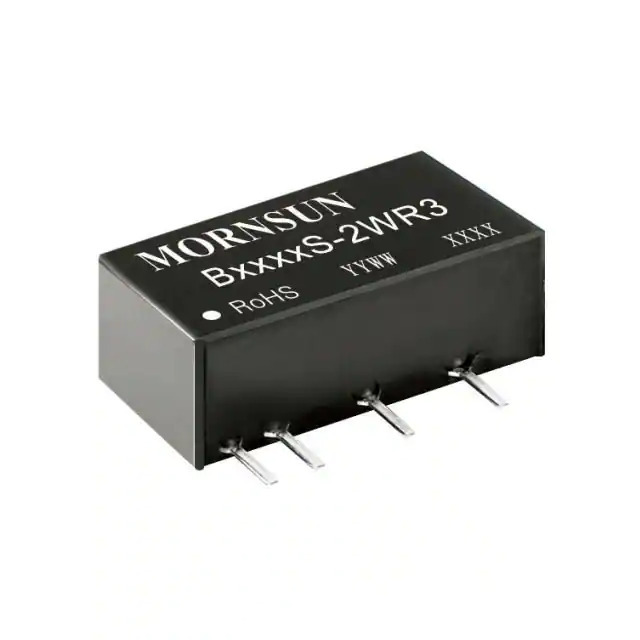

B0503S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

B0503S-2WR3

Part No B0503S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 2W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series B0503S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 400mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency -
Standard Number -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372760-B0503S-2WR3
Ultra Librarian 3D Model Ultra Librarian B0503S-2WR3 CAD Model

Description

The B0503S-2WR3 is a 2W isolated module DC-DC converter from Mornsun America, LLC.

  • Output Type: Isolated
  • Voltage - Output 1: 3.3V
  • Current - Output (Max): 400mA
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 5.5V
  • Power (Watts): 2W
  • Applications: ITE (Commercial)
  • Efficiency: 78%
  • Voltage - Isolation: 1.5 kV
  • Operating Temperature: -40°C ~ 105°C (With Derating)
  • Mounting Type: Through Hole
  • Package / Case: 77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
