Same model may have multiple batches, images only for reference.

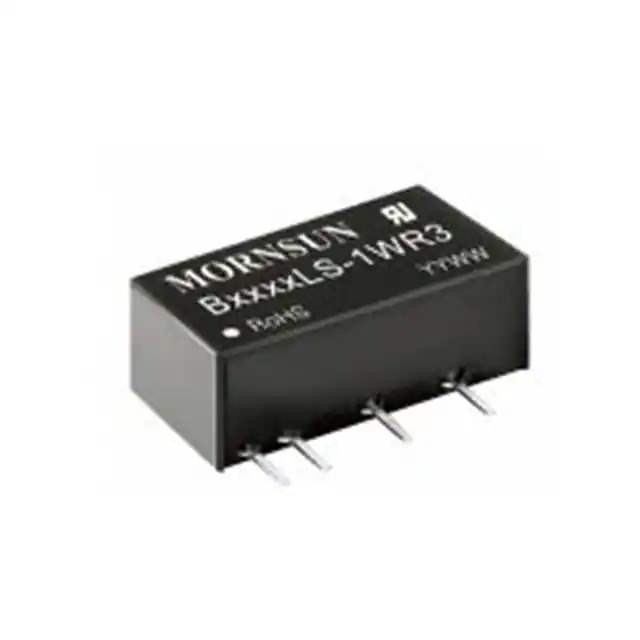

B0503XT-1WR3 Real Image
Same model may have multiple batches, images only for reference.

B0503XT-1WR3

Part No B0503XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 303mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series B_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Current - Output (Max) 303mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 74%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency CB, CE, cURus
Base Product Number B0503XT
Standard Package 38 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848519-B0503XT-1WR3
Ultra Librarian 3D Model Ultra Librarian B0503XT-1WR3 CAD Model

Description

The B_XT-1WR3 is a 1W isolated DC-DC converter module designed for board mounting. It features a single output with a voltage isolation of 1.5kV.

  • Power: 1W
  • Isolation Voltage: 1.5kV
  • Output Type: Single
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 3.3V
  • Maximum Output Current: 303mA
  • Application: ITE
  • Size: 0.52" L x 0.33" W x 0.29" H
  • Package: Tube
  • Efficiency: 74%
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer: MORNSUN Science & Technology Ltd
