Same model may have multiple batches, images only for reference.

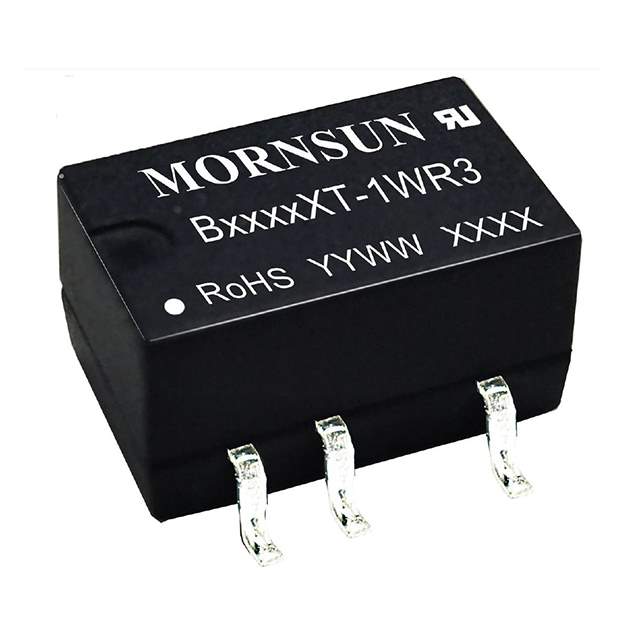

B2405XT-1WR3 Real Image
Same model may have multiple batches, images only for reference.

B2405XT-1WR3

Part No B2405XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W  /  Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series B_XT-1WR3 (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting SMD (SMT)
Package / Case 8-SMD Module, 5 Leads
Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2725-B2405XT-1WR3
Standard Package 38
Win Source Part Number 1200999-B2405XT-1WR3
Ultra Librarian 3D Model Ultra Librarian B2405XT-1WR3 CAD Model

Description

The MORNSUN Science& Technology Ltd. B2405XT-1WR3 is a power supply board mount DC DC converter used in ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Module Type: Isolated
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 200mA
  • Efficiency: 80%
  • Cross-Reference: B2405XT1WR3
