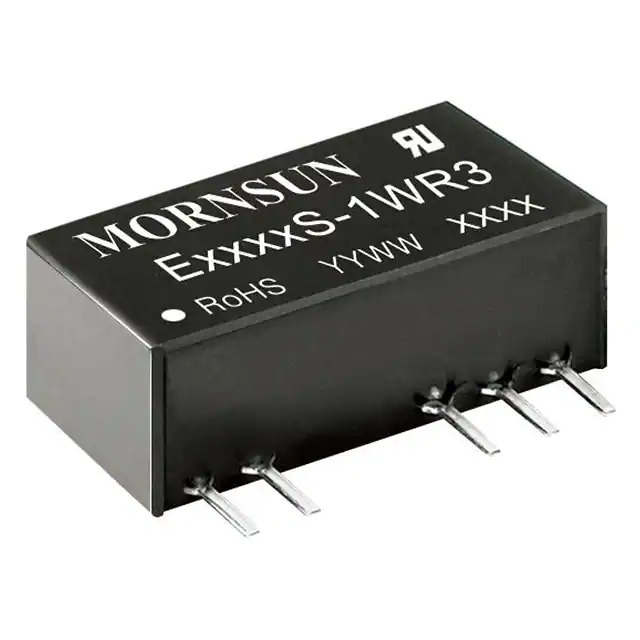

E1224S-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

E1224S-1WR3

Part No E1224S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series E_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 21mA, 21mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372945-E1224S-1WR3
Ultra Librarian 3D Model Ultra Librarian E1224S-1WR3 CAD Model

Description

The 1372945-E1224S-1WR3 is an isolated DC-DC converter module from Mornsun America, LLC.

  • Series: E_S-1WR3 (1W)
  • Power Output: 1W
  • Voltage - Input: 10.8V to 13.2V
  • Voltage - Output: 24V and -24V
  • Package / Case: 7-SIP module with 5 leads
  • Mounting Type: Through-hole mounting
  • Current Output: 21mA for both outputs
  • Efficiency: 80%
  • Approval Agencies: CB, CE, cURus, and UL
  • Standards: 62368-1
  • Size / Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
  • Application: ITE (Commercial) applications
