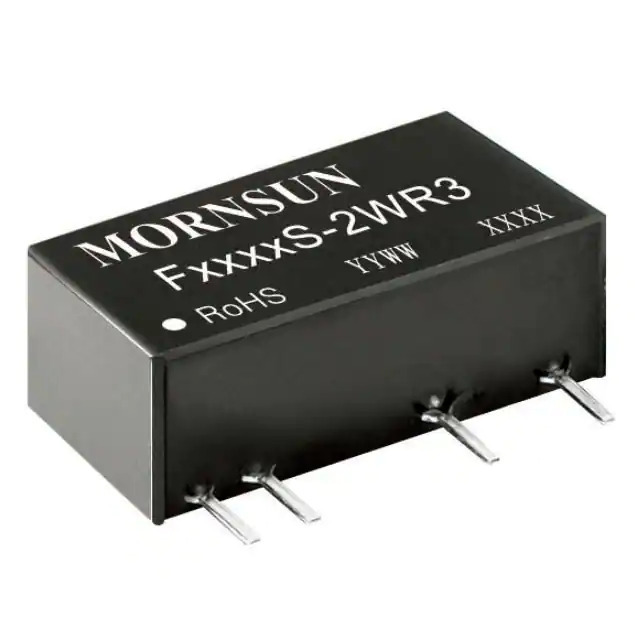

F0515S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F0515S-2WR3

Part No F0515S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 133mA 4.5V - 5.5V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F0515S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 133mA
Power (Watts) 1.9 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency -
Standard Number -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372941-F0515S-2WR3
Ultra Librarian 3D Model Ultra Librarian F0515S-2WR3 CAD Model

Description

The Mornsun America DC-DC Converter is a reliable and efficient power supply module designed for board mounting in electronic devices.

  • Operating Temperature: -40°C to 105°C
  • Module Type: Isolated Module
  • Voltage - Input: 4.5V to 5.5V
  • Voltage - Output 1: 15V
  • Output Current: 133mA
  • Efficiency: 86%
  • Package / Case: 7-SIP module with 4 leads
  • Mounting Type: Through Hole
  • Size / Dimension: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
  • Application: ITE (Commercial) applications
  • Power (Watts): 1.9W
  • Product Status: Active
  • Manufacturer: Mornsun America, LLC
  • Standard Number: 62368-1
