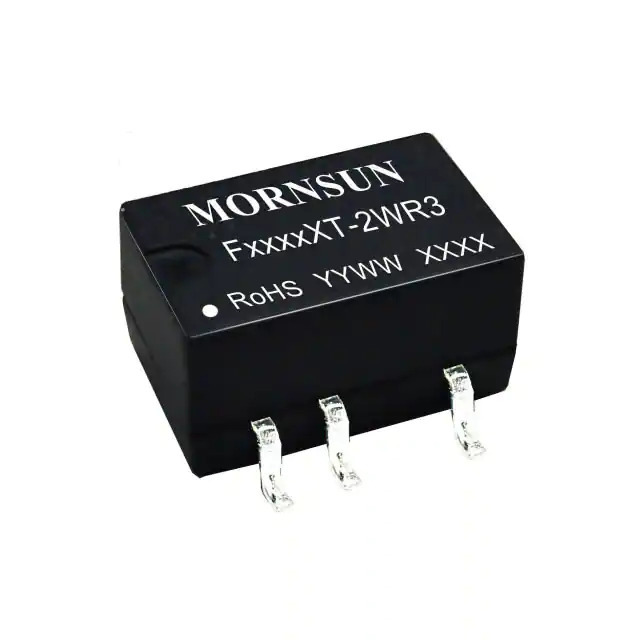

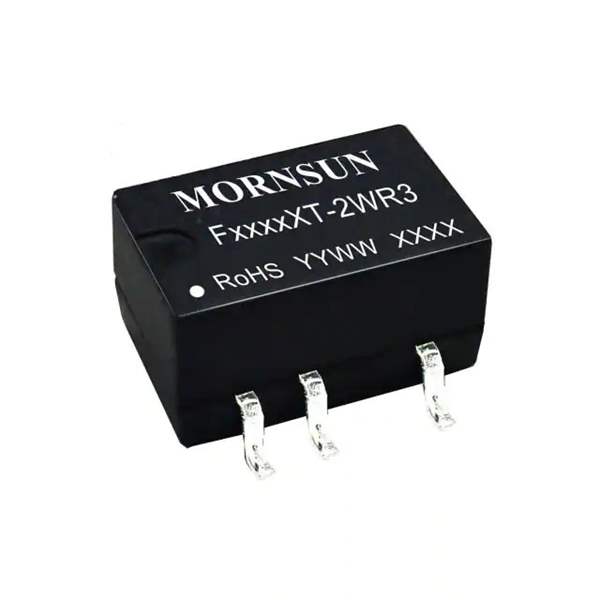

F0524XT-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F0524XT-2WR3

Part No F0524XT-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 2W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F0524XT-2WR3 (2W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 83mA
Power (Watts) 1.9 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 86%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CE, UKCA
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372907-F0524XT-2WR3
Ultra Librarian 3D Model Ultra Librarian F0524XT-2WR3 CAD Model

Description

The F0524XT-2WR3 (2W) is an isolated module power supply manufactured by Mornsun America, LLC.

  • Package: 8-SMD module with 5 leads
  • Mounting: can be surface mounted
  • Operating Temperature: -40°C to 105°C (with derating)
  • Maximum Input Voltage: 5.5V
  • Output: single output of 24V
  • Voltage Isolation: 3 kV
  • Efficiency: 86%
  • Size: 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
  • Suitable for: various applications in ITE (Commercial) devices
  • Compliance: CE and UKCA certification standards
