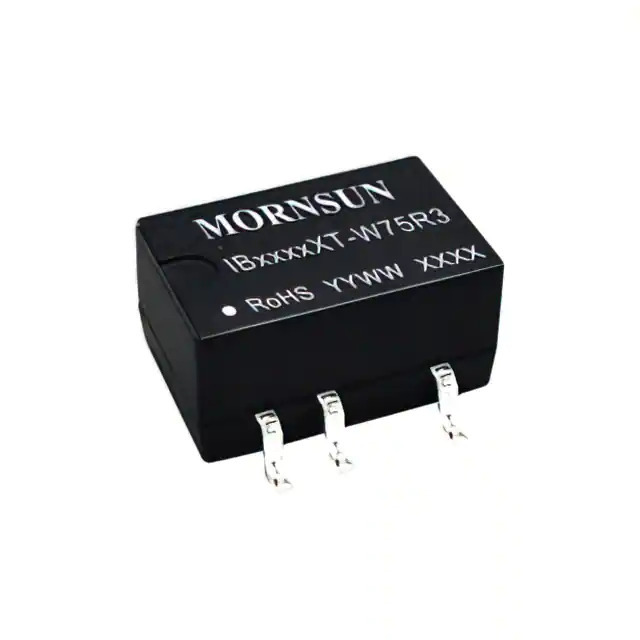

IB0505XT-W75R3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

IB0505XT-W75R3

Part No IB0505XT-W75R3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series IB05_XT-W75R3 (750mW)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 5.25V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 150mA
Power (Watts) 750 mW
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 72%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CE, EN, UKCA
Standard Number 62368-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372799-IB0505XT-W75R3
Ultra Librarian 3D Model Ultra Librarian IB0505XT-W75R3 CAD Model

Description

The 1372799-IB0505XT-W75R3 is an isolated DC-DC converter module manufactured by Mornsun America, LLC.

  • Power Rating: 750mW
  • Maximum Output Current: 150mA
  • Input Voltage Range: 4.75V to 5.25V
  • Output Voltage: 5V
  • Application: ITE (Commercial)
  • Size: 0.52" L x 0.33" W x 0.29" H
  • Mounting: Surface-Mounted
  • Package: 8-SMD module
  • Leads: 5
  • Voltage Isolation: 1.5kV
  • Efficiency: 72%
  • Approval Agencies: CE, EN, and UKCA
