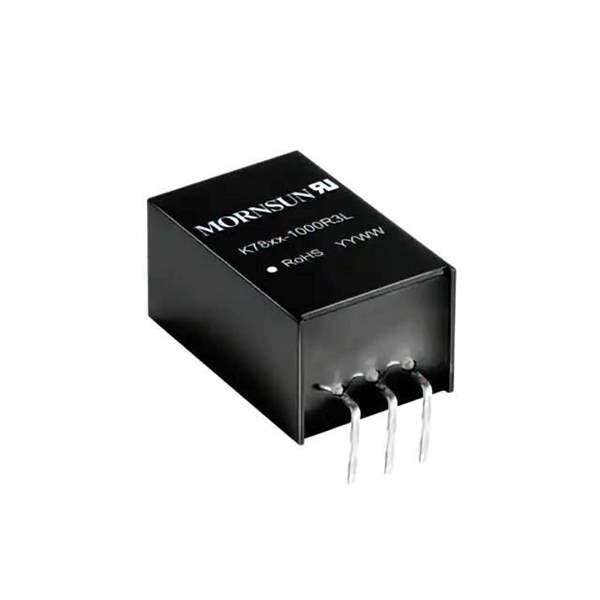

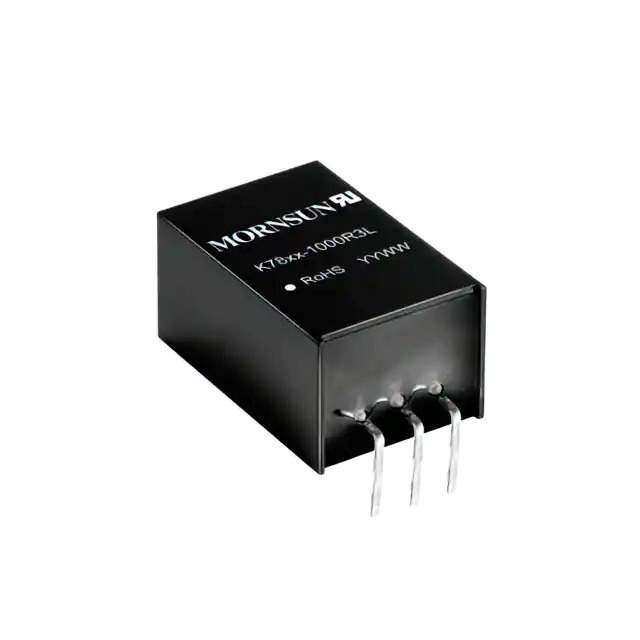

K7805-1000R3L Real Image
Same model may have multiple batches, images only for reference.

K7805-1000R3L

Part No K7805-1000R3L
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series K7805-1000R3L
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 6V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 1A, 500mA
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 93%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1; 62368-1
Standard Package 44 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1066884-K7805-1000R3L
Ultra Librarian 3D Model Ultra Librarian K7805-1000R3L CAD Model

Description

The K7805-1000R3L is a non-isolated PoL (Point of Load) module DC/DC converter from MORNSUN Science & Technology Ltd.

  • Series: K7805-1000R3L
  • Application: ITE (Commercial)
  • Power output: 1A and 500mA for its two outputs
  • Input voltage range: 6V to 36V
  • Voltage output: 5V and -5V
  • Package: 3-SIP module
  • Dimensions: 0.69" L x 0.45" W x 0.35" H
  • Efficiency: 93%
  • Temperature range: -40°C to 85°C with derating
  • Approvals: CB, CE, cURus, and UL
  • Standard numbers: 60950-1 and 62368-1
