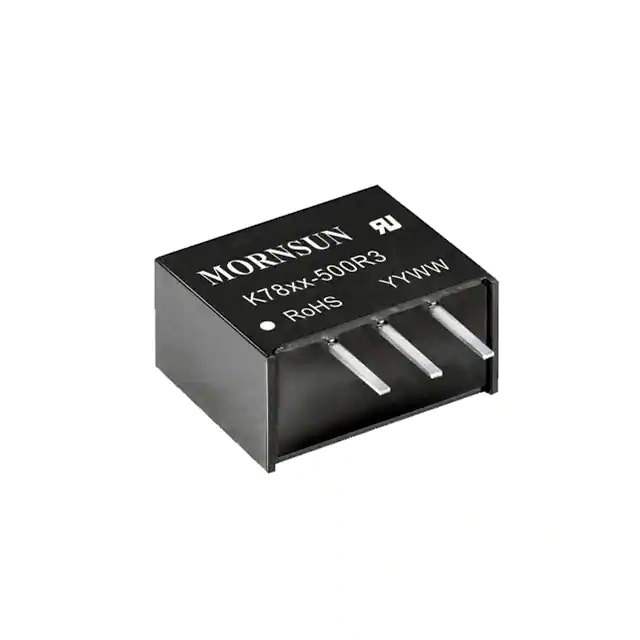

Same model may have multiple batches, images only for reference.

K7805-500R3

Name: K7805-500R3
Brand: default
SKU: 609450
Availability: InStock
Rating: 4.77 (48 reviews)

Get a Quote

Part No	K7805-500R3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 4W
Sample
Rohs State
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	MORNSUN Science& Technology Ltd.
Series	K7805-500R3
Package	Tube
Product Status	Active
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	6.5V, 7V
Voltage - Input (Max)	36V, 31V
Voltage - Output 1	5V, -5V
Current - Output (Max)	500mA, 300mA
Power (Watts)	4 W
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	90%
Mounting Type	Through Hole
Package / Case	3-SIP Module
Size / Dimension	0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
Approval Agency	CB, CE, cURus
Base Product Number	K7805
Standard Package	43 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	609450-K7805-500R3
Ultra Librarian 3D Model	Ultra Librarian K7805-500R3 CAD Model

Alternative Products

Description

The K7805-500R3 is a linear regulator replacement power supply module designed for board mount DC-DC conversion.

Size: 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
Package: 43 pcs
Input Voltage: 6.5V to 36V
Output Power (Max): 4W
Output: One output with voltages of 5V and -5V respectively
Efficiency: 90%
Application: ITE (Commercial)
Mounting Type: Through-Hole
Temperature Range: -40°C to 85°C
Approvals: CB, CE, cURus
