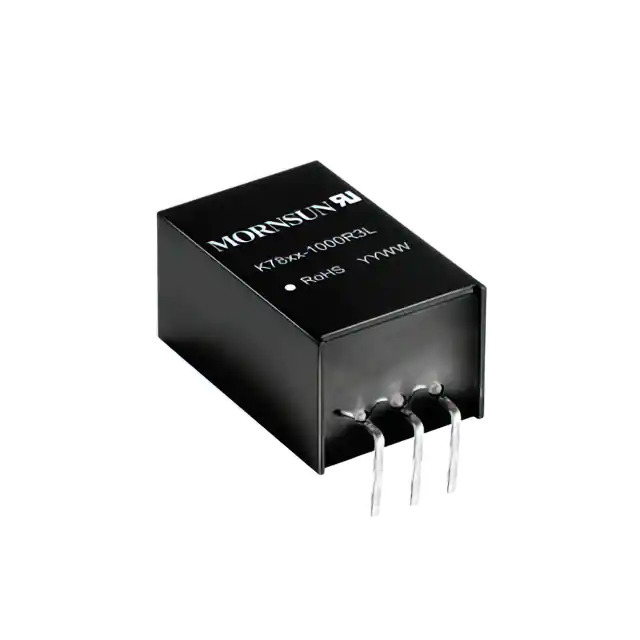

K7809-1000R3L MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K7809-1000R3L

Part No K7809-1000R3L
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K7809-1000R3L
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 13V
Voltage - Input (Max) 36V
Voltage - Output 1 9V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1A
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 95%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1; 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372862-K7809-1000R3L
Ultra Librarian 3D Model Ultra Librarian K7809-1000R3L CAD Model

Description

The Mornsun America K7809-1000R3L is a non-isolated PoL (Point of Load) module designed for power supplies in board mount applications.

  • Series: K7809-1000R3L
  • Output Current: 1A
  • Voltage - Output 1: 9V
  • Operating Temperature: -40°C to 85°C (with derating)
  • Efficiency: 95%
  • Voltage - Input (Max): 36V
  • Package / Case: 3-SIP Module
  • Size / Dimension: 0.69" L x 0.45" W x 0.35" H
  • Approvals: CB, CE, cURus, UL
