Same model may have multiple batches, images only for reference.

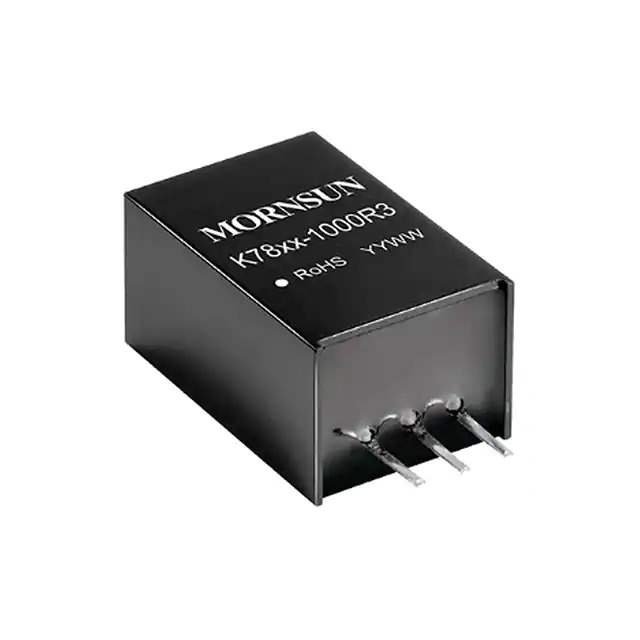

K7815-1000R3 Real Image
Same model may have multiple batches, images only for reference.

K7815-1000R3

Part No K7815-1000R3
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series K7815-1000R3
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 8V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1A, 300mA
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 96%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1; 62368-1
Standard Package 44 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1008300-K7815-1000R3
Ultra Librarian 3D Model Ultra Librarian K7815-1000R3 CAD Model

Description

The K7815-1000R3 is a non-isolated PoL module from MORNSUN Science & Technology Ltd. It is a power supply board mount DC-DC converter designed for ITE (Commercial) applications.

  • Product: K7815-1000R3
  • Manufacturer: MORNSUN Science & Technology Ltd
  • Type: Non-isolated PoL Module, DC-DC Converter
  • Application: ITE (Commercial)
  • Voltage Input Range: 8V to 18V
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Maximum Current Output 1: 1A
  • Maximum Current Output 2: 300mA
  • Size: 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
  • Mounting: Through-Hole
  • Package: 3-SIP Module
  • Efficiency: 96%
  • Operating Temperature: -40°C to 85°C (with derating)
  • Approvals: CB, CE, cURus, UL
  • Standard Numbers: 60950-1 and 62368-1
