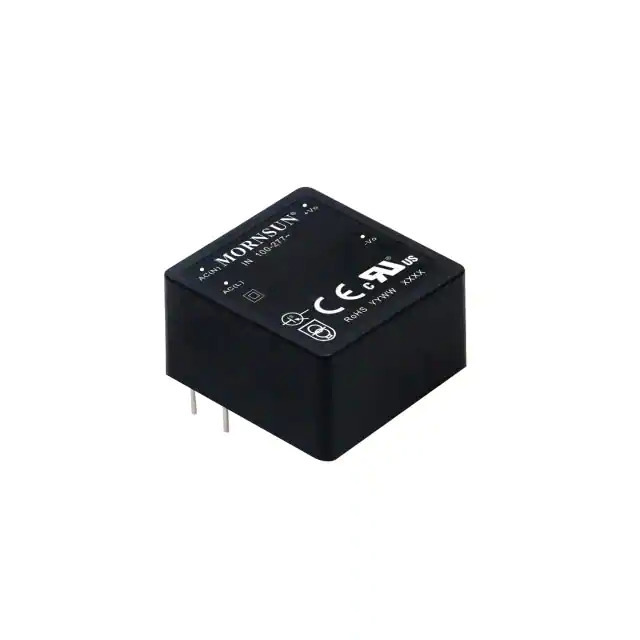

LD05-23B03R2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LD05-23B03R2

Part No LD05-23B03R2
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 3.3V 5W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LD-R2
Package Tray
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 3.3V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1.515A
Power (Watts) 5 W
Applications Household Appliances, ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 71.5%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
Approval Agency CB, CE, cURus
Line Regulation ±0.5%
Load Regulation ±1%
Base Product Number LD05-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1372727-LD05-23B03R2
Ultra Librarian 3D Model Ultra Librarian LD05-23B03R2 CAD Model

Description

The LD05-23B03R2 is a 5W AC/DC converter module from Mornsun America, LLC.

  • Mounting Type: Board Mount
  • Package / Case: Enclosed Module
  • Voltage - Input: 85VAC ~ 305VAC, 100VDC ~ 430VDC
  • Voltage - Output 1: 3.3V
  • Current - Output (Max): 1.515A
  • Size / Dimension: 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
  • Applications: Household Appliances, ITE (Commercial)
  • Approvals: CB, CE, cURus
  • Efficiency: 71.5%
