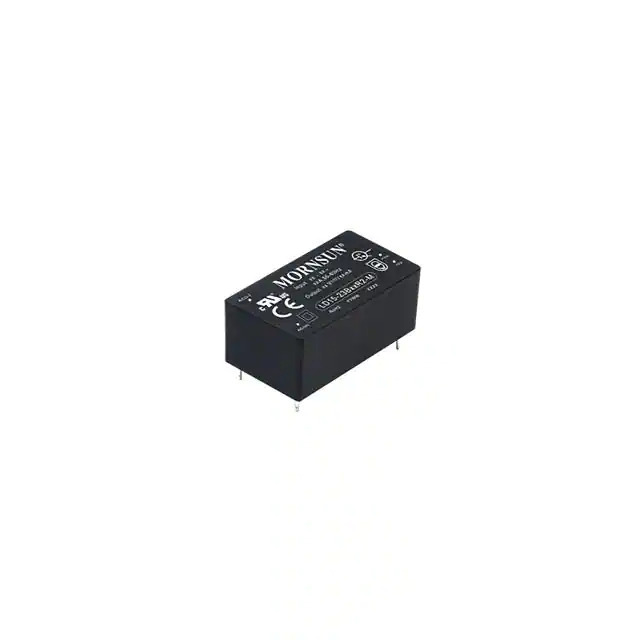

LD15-23B15R2-M MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LD15-23B15R2-M

Part No LD15-23B15R2-M
Catalog Board Mount AC DC Converters
Description ENCLOSED AC DC CONVERTERS 1 OUTP
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series LD15-23BxxR2-M (15W)
Package Bulk
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1A
Power (Watts) 15 W
Applications Household Appliances, ITE (Commercial), Medical
Features Universal Input
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60335-1; 60601-1; 62368-1
Line Regulation ±0.5%
Load Regulation ±1%
Weight -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1373109-LD15-23B15R2-M
Ultra Librarian 3D Model Ultra Librarian LD15-23B15R2-M CAD Model

Description

The LD15-23BxxR2-M is an enclosed power supply module manufactured by Mornsun America, LLC.

  • Power (Watts): 15W
  • Voltage - Input: 85V to 305VAC and 100V to 430VDC
  • Voltage - Output (Max): 15V
  • Current - Output (Max): 1A
  • Efficiency: 87%
  • Standard Numbers: 8504.40.9510, 60335-1, 60601-1, and 62368-1
  • Application: Household Appliances, ITE (Commercial), and medical applications
  • Package / Case: 5-DIP module with 4 leads
  • Mounting Type: Through Hole
  • Size / Dimension: 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm)
  • Packaging: Bulk
