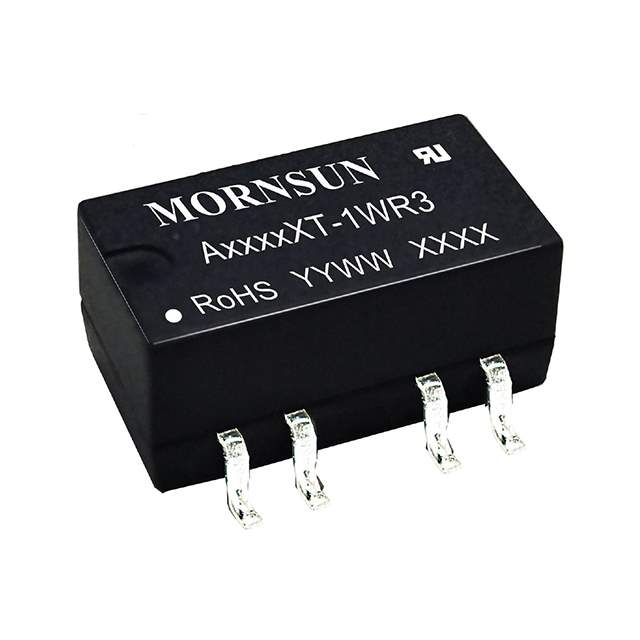

A1215XT-1WR3 Real Image
Same model may have multiple batches, images only for reference.

A1215XT-1WR3

Part No A1215XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 34mA, 34mA 10.8V - 13.2V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Mornsun America, LLC
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 34mA, 34mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Surface Mount
Case / Package 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2725-A1215XT-1WR3
Standard Package 32
Win Source Part Number 1335138-A1215XT-1WR3
Ultra Librarian 3D Model Ultra Librarian A1215XT-1WR3 CAD Model

Description

The MORNSUN America, LLC 1335138-A1215XT-1WR3 is a power supply board mount DC/DC converter that is used in electronic devices.

  • Type: Isolated module
  • Output Voltage: 15V and -15V
  • Maximum Output Current: 34mA
  • Supply and Demand Status: Limited availability
