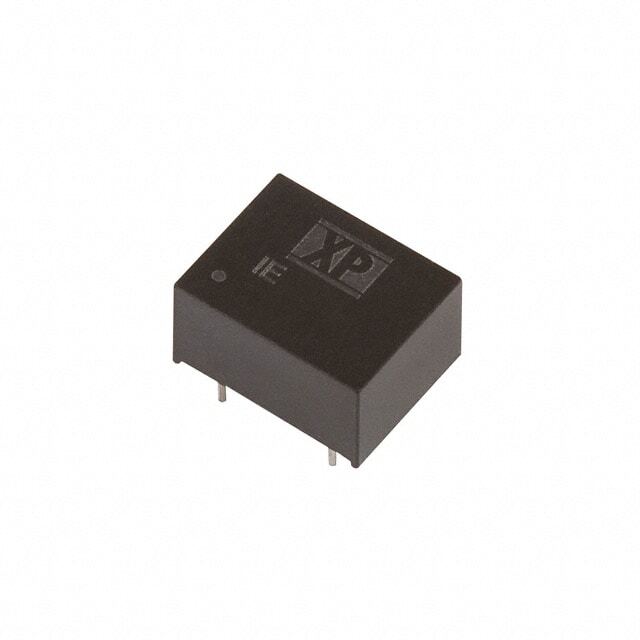

Same model may have multiple batches, images only for reference.

IE2409D

Name: IE2409D
Brand: XP Power
SKU: 847834
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IE2409D
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 1W
Datasheet	IE2409D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IE (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	9V
Current - Output (Max)	111mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	77%
Mounting Type	Through Hole
Package / Case	4-DIP Module
Size / Dimension	0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm)
Base Product Number	IE2409
Standard Package	40 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847834-IE2409D
Ultra Librarian 3D Model	Ultra Librarian IE2409D CAD Model

Alternative Products

Description

The IE2409D is a 1W isolated module DC-DC converter. XP Power manufactures it.

Series: IE
Size: 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm)
Output: Single
Maximum Output Current: 111mA
Input Voltage: 21.6V to 26.4V
Output Voltage: 9V
Efficiency: 77%
Application: ITE (Commercial)
Mounting: Through-hole
Package: 4-DIP Module
Temperature Range: -40°C to 85°C
Product Status: Active
