Same model may have multiple batches, images only for reference.

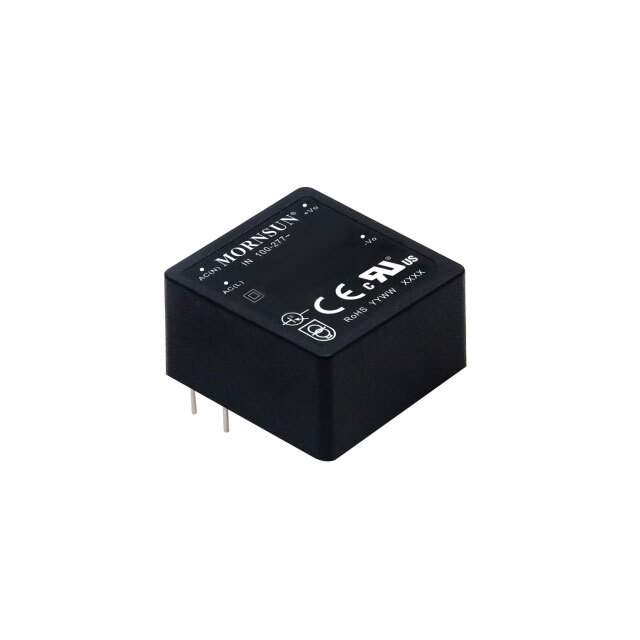

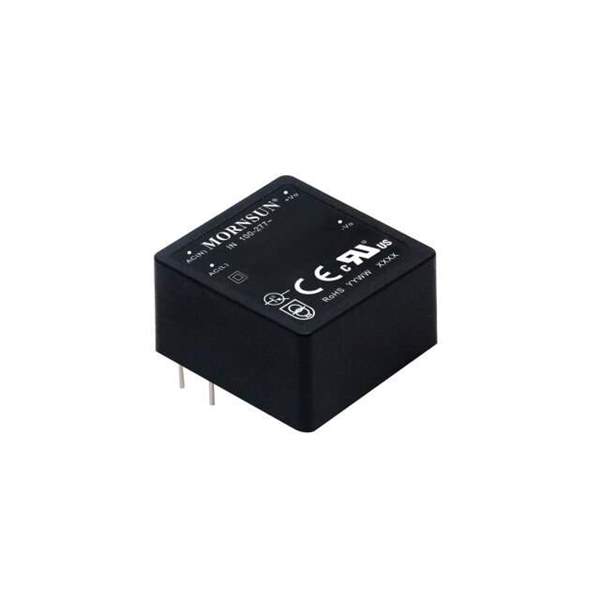

LD03-23B12R2 Real Image
Same model may have multiple batches, images only for reference.

LD03-23B12R2

Part No LD03-23B12R2
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 3W / Enclosed AC DC Converters 1 Output 12V 250mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LD-R2
Package Tray
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Applications Household Appliances, ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
Approval Agency CB, CE, cURus
Line Regulation ±0.5%
Load Regulation ±1%
Base Product Number LD03-23
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1338660-LD03-23B12R2
Ultra Librarian 3D Model Ultra Librarian LD03-23B12R2 CAD Model

Description

The Mornsun America, LLC 1338660-LD03-23B12R2 is a power supply board mount AC DC converter that offers 78% efficiency. It is RoHS compliant and has a temperature range of -40°C to 85°C (With Derating).
