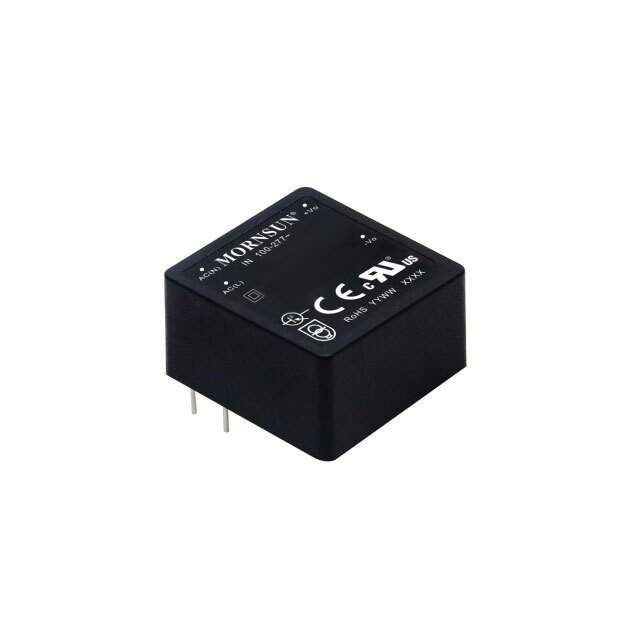

Same model may have multiple batches, images only for reference.

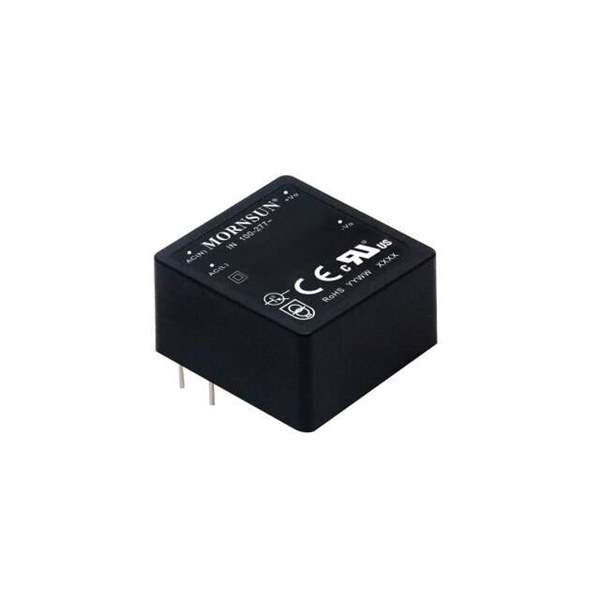

LD05-23B24R2 Real Image
Same model may have multiple batches, images only for reference.

LD05-23B24R2

Part No LD05-23B24R2
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 5W / Enclosed AC DC Converters 1 Output 24V 208mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LD-R2
Package Tray
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 24V
Current - Output (Max) 208mA
Power (Watts) 5 W
Applications Household Appliances, ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81.5%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
Approval Agency CB, CE, cURus
Line Regulation ±0.5%
Load Regulation ±1%
Base Product Number LD05-23
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1337846-LD05-23B24R2
Ultra Librarian 3D Model Ultra Librarian LD05-23B24R2 CAD Model

Description

The 1337846-LD05-23B24R2 is a power supply module from Mornsun America, LLC.

  • Type: Enclosed
  • Size: 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
  • Applications: Household Appliances and ITE (Commercial)
  • Output Power (Max): 5 W
  • Input Voltage: 85 ~ 305 VAC, 100 ~ 430 VDC
  • Output(s): Single
  • Output Current (Max): 208mA
  • Output Voltage: 24V
  • Efficiency: 81.5%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Mounting Type: Through Hole
  • Package/Case: 5-DIP Module, 4 Leads
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Approvals: CB, CE, cURus
