Same model may have multiple batches, images only for reference.

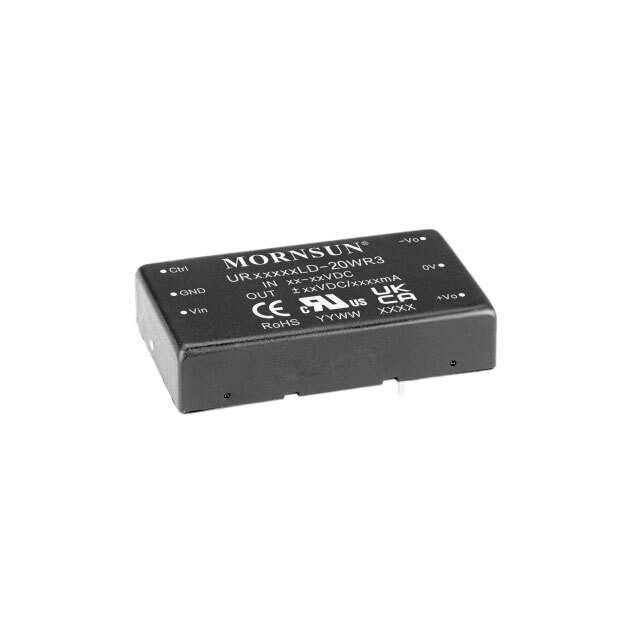

URB2424LD-20WR3 Real Image
Same model may have multiple batches, images only for reference.

URB2424LD-20WR3

Part No URB2424LD-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 20W  /  Isolated Module DC DC Converter 1 Output 24V 834mA 9V - 36V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series URB2424LD-20WR3 (20W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 834mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2725-URB2424LD-20WR3
Standard Package 19
Win Source Part Number 1103432-URB2424LD-20WR3
Ultra Librarian 3D Model Ultra Librarian URB2424LD-20WR3 CAD Model

Description

The MORNSUN Science& Technology Ltd. URB2424LD-20WR3 is a power supply board mount DC-DC converter.

  • Series: 20W series type module
  • Feature: adjustable output and remote on/off
  • Package: tube form with 19 standard packages
  • Suitable for: ITE commercial applications
  • Efficiency: high efficiency of 90%
  • Mounting: suitable for through-hole mounting
  • Operating Temperature Range: from -40°C to 85°C with derating
