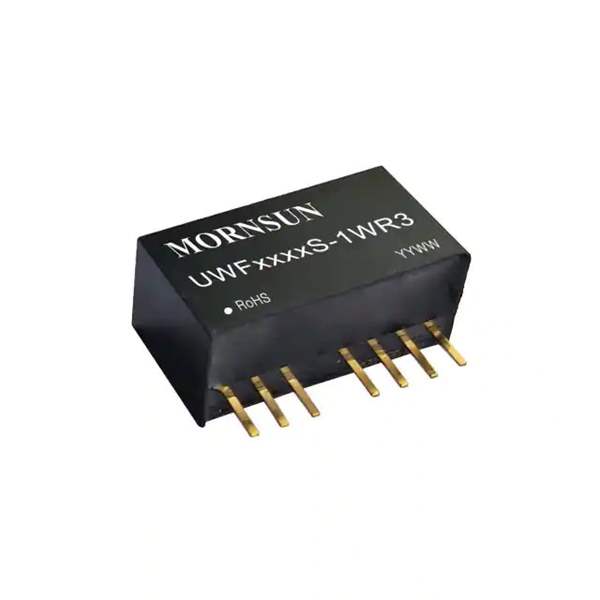

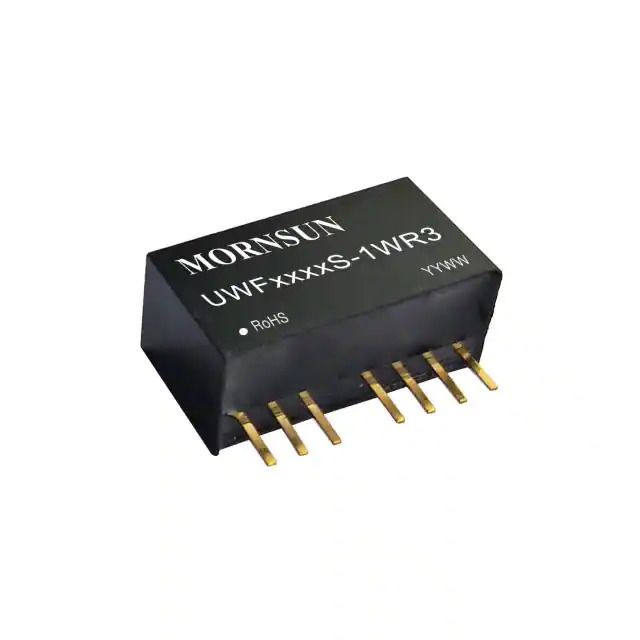

UWF1215S-3WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

UWF1215S-3WR3

Part No UWF1215S-3WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER,3W,15VDC
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series UWF_S-3WR3 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 200mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Base Product Number UWF1215
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373076-UWF1215S-3WR3
Ultra Librarian 3D Model Ultra Librarian UWF1215S-3WR3 CAD Model

Description

The UWF1215S-3WR3 is a 3W isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Application: ITE (Commercial)
  • Operating Temperature: -40°C ~ 105°C (with derating)
  • Input Voltage: 36V (Max)
  • Output Current: 200mA (Max)
  • Output Voltage: 15V
  • Package: 8-SIP Module
  • Leads: 7
  • Voltage Isolation: 3 kV
  • Approval: CE
  • Efficiency: 79%
  • Size: 0.87" L x 0.37" W x 0.47" H
  • Series: UWF_S-3WR3
  • Product Status: Active
