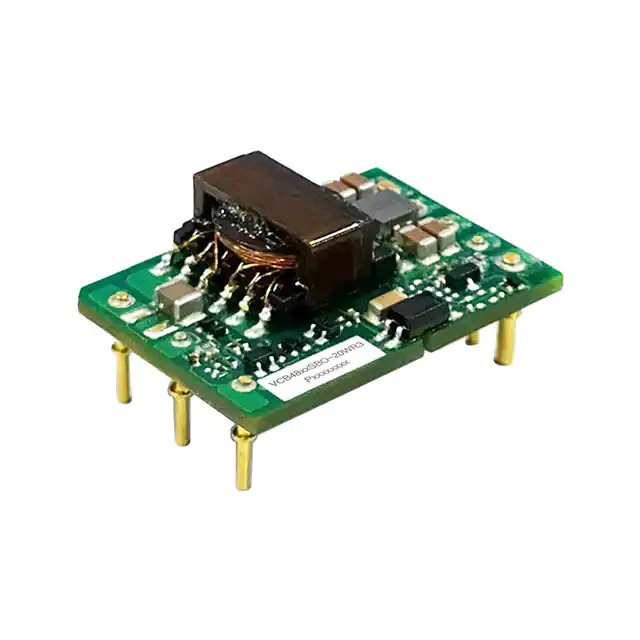

Same model may have multiple batches, images only for reference.

VCB4812SBO-20WR3

Get a Quote

Part No	VCB4812SBO-20WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER, 20W, 12V
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	VCB48_SBO-20WR3 (20W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	1.667A
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Adjustable Output, Remote Sense
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting Type	Through Hole
Package / Case	Sixteenth Brick
Size / Dimension	1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
Supplier Device Package	Sixteenth Brick
Control Features	-
Approval Agency	CE
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1373057-VCB4812SBO-20WR3
Ultra Librarian 3D Model	Ultra Librarian VCB4812SBO-20WR3 CAD Model

Alternative Products

Description

The VCB4812SBO-20WR3 is a power supply module designed for board mount applications manufactured by Mornsun America, LLC.

Series: VCB48_SBO-20WR3
Features: Adjustable output and remote sense
Size: 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
Application: ITE (Commercial) devices
Temperature Range: -40°C to 85°C (with derating)
Efficiency: 89%
Maximum Output Current: 1.667A
Power Rating: 20W
Input Voltage Range: 36V to 75V
Output Voltage: 12V
Mounting Style: Through-hole
Approval: CE
Voltage Isolation: 1.5kV
