Same model may have multiple batches, images only for reference.

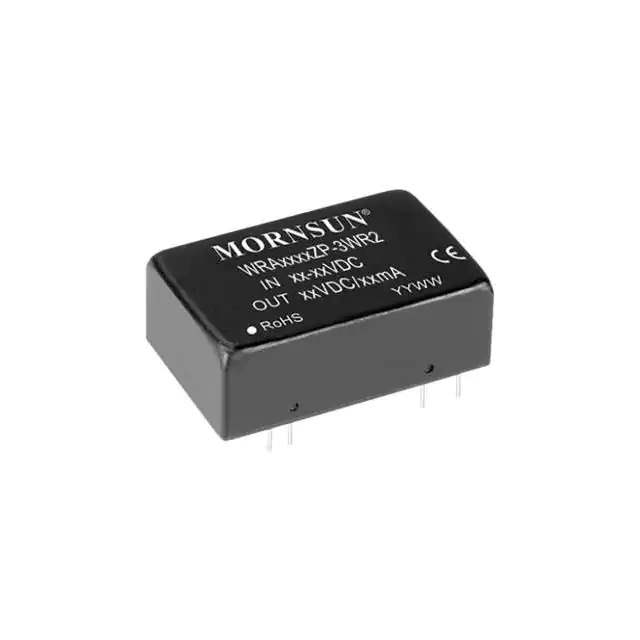

WRA1215ZP-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRA1215ZP-3WR2

Part No WRA1215ZP-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRA_ZP-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Approval Agency CE
Standard Number 60950-1; 62368-1
Standard Package 15 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1178544-WRA1215ZP-3WR2
Ultra Librarian 3D Model Ultra Librarian WRA1215ZP-3WR2 CAD Model

Description

The MORNSUN Science & Technology Ltd. WRA_ZP-3WR2 (3W) is an isolated module power supply designed for board mount applications.

  • Category: Power Supplies - Board Mount - DC DC Converters
  • Functionality: Remote On/Off
  • Power Rating: 3W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Outputs: 2
  • Maximum Current: 100mA each
  • Input Voltage Range: 9V to 18V
  • Output Voltages: 15V and -15V
  • Size: 1.26" L x 0.79" W x 0.43" H
  • Mounting: Through-Hole
  • Package: Tube
  • Standard Package: 15 pcs
  • Status: Active
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approvals: CE
  • Standard Numbers: 60950-1 and 62368-1
