Same model may have multiple batches, images only for reference.

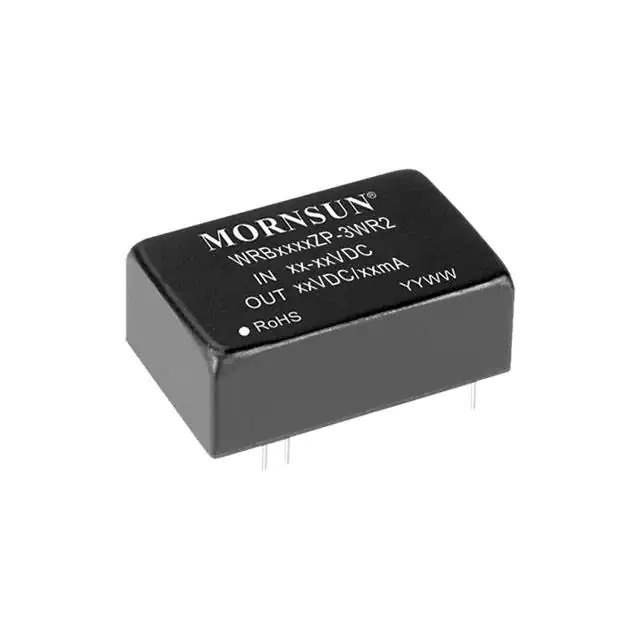

WRB4805ZP-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB4805ZP-3WR2

Part No WRB4805ZP-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_ZP-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Approval Agency CE
Standard Number 60950-1; 62368-1
Standard Package 15 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 697869-WRB4805ZP-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB4805ZP-3WR2 CAD Model

Description

The WRB4805ZP-3WR2 is a DC DC converter from MORNSUN Science & Technology Ltd.

  • Series: WRB_ZP-3WR2
  • Type: 3W isolated module type converter
  • Package: Tube
  • Dimensions: 1.26" L x 0.79" W x 0.43" H
  • Applications: ITE (Commercial)
  • Standard Package: 15 pcs
  • Output: Single
  • Voltage Output: 5V
  • Maximum Output Current: 600mA
  • Input Voltage Range: 36V to 75V
  • Efficiency: 82%
  • Mounting: Through-hole
  • Operating Temperature Range: -40°C to 85°C with derating
  • Status: Active product
  • Approval: CE
  • Standard Numbers: 60950-1 and 62368-1
