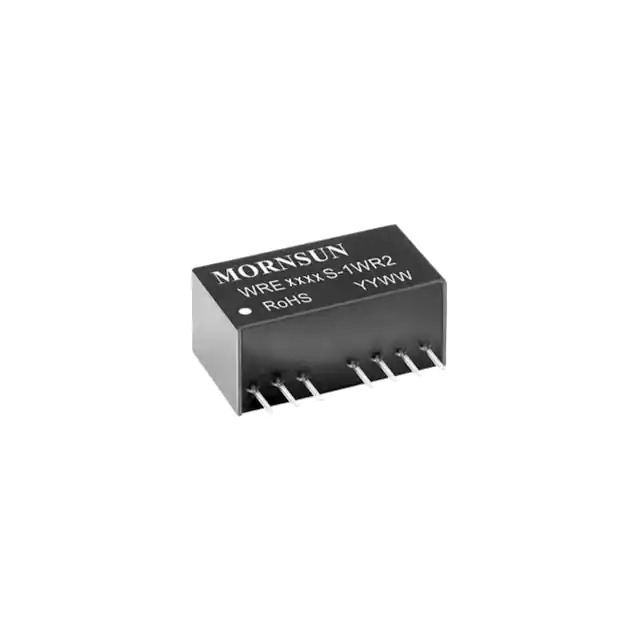

Same model may have multiple batches, images only for reference.
WRE0505S-1WR2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

WRE0505S-1WR2

Part No WRE0505S-1WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series WRE_S-1WR2 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 73%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE, EN, UKCA
Standard Number 62368-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372873-WRE0505S-1WR2
Ultra Librarian 3D Model Ultra Librarian WRE0505S-1WR2 CAD Model

Description

The WRE0505S-1WR2 (1W) is an isolated module power supply from Mornsun America, LLC.

  • Module Type: 8-SIP
  • Number of Leads: 7
  • Mounting Type: Through Hole
  • Voltage Input Range: 4.5V to 9V
  • Output Voltages: 5V, -5V
  • Maximum Output Current: 100mA
  • Power: 1W
  • Voltage Isolation: 3kV
  • Efficiency: 73%
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Features: Remote On/Off
  • Approvals: CE, EN, UKCA
  • Product Status: Active
