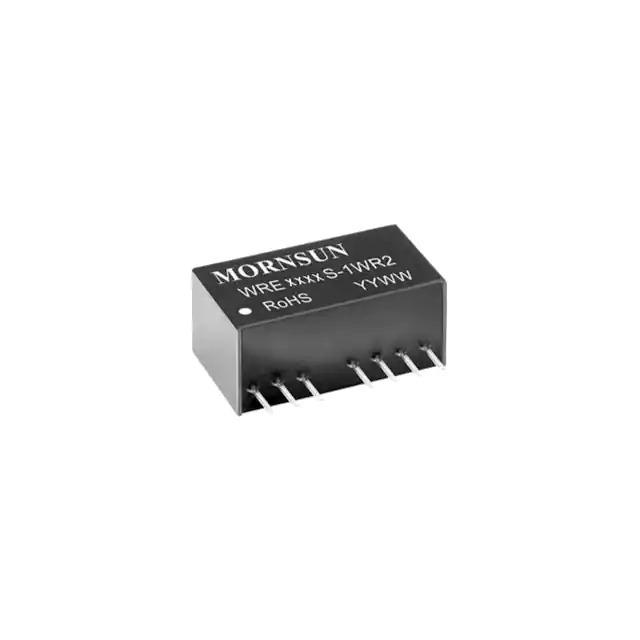

WRE2415S-1WR2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

WRE2415S-1WR2

Part No WRE2415S-1WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series WRE_S-1WR2 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 33mA, 33mA
Power (Watts) 990 mW
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE, EN, UKCA
Standard Number 62368-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372899-WRE2415S-1WR2
Ultra Librarian 3D Model Ultra Librarian WRE2415S-1WR2 CAD Model

Description

The WRE2415S-1WR2 (1W) is an isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Design: designed for board mount applications in the power supplies category
  • Operating Temperature: -40°C to 85°C
  • Package: 8-SIP module with 7 leads
  • Maximum Output Current: 33mA
  • Power Rating: 990mW
  • Input Voltage Range: 18V to 36V
  • Output Voltages: 15V and -15V
  • Efficiency: 78%
  • Suitable for: ITE (Commercial) applications
  • Compliance: REACH regulations
  • Voltage Isolation: 3 kV
  • Product Status: active product
